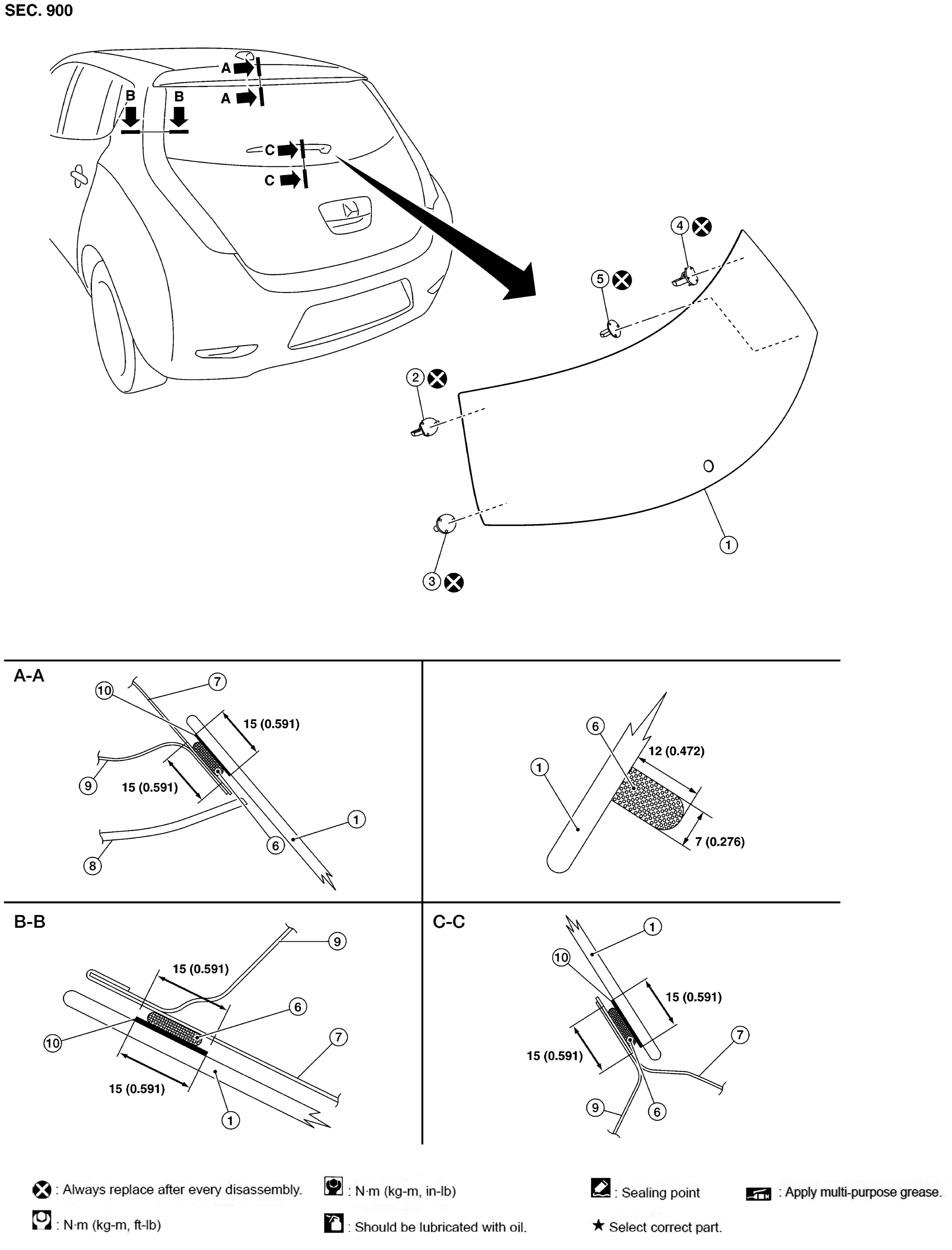

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Unit:mm (in)

1.	Back door window glass	2.	Glass holder (upper LH)	3.	Glass holder (lower LH)
4.	Glass holder (upper RH)	5.	Glass holder (lower RH)	6.	Adhesive
7.	Back door outer	8.	Back door finisher	9.	Back door inner
10.	Glass primer
