Service Data And Specifications (SDS)
›
Accelerator Control
Accelerator Control
Unit: mm (in)
Courtesy of NISSAN NORTH AMERICA, INC.

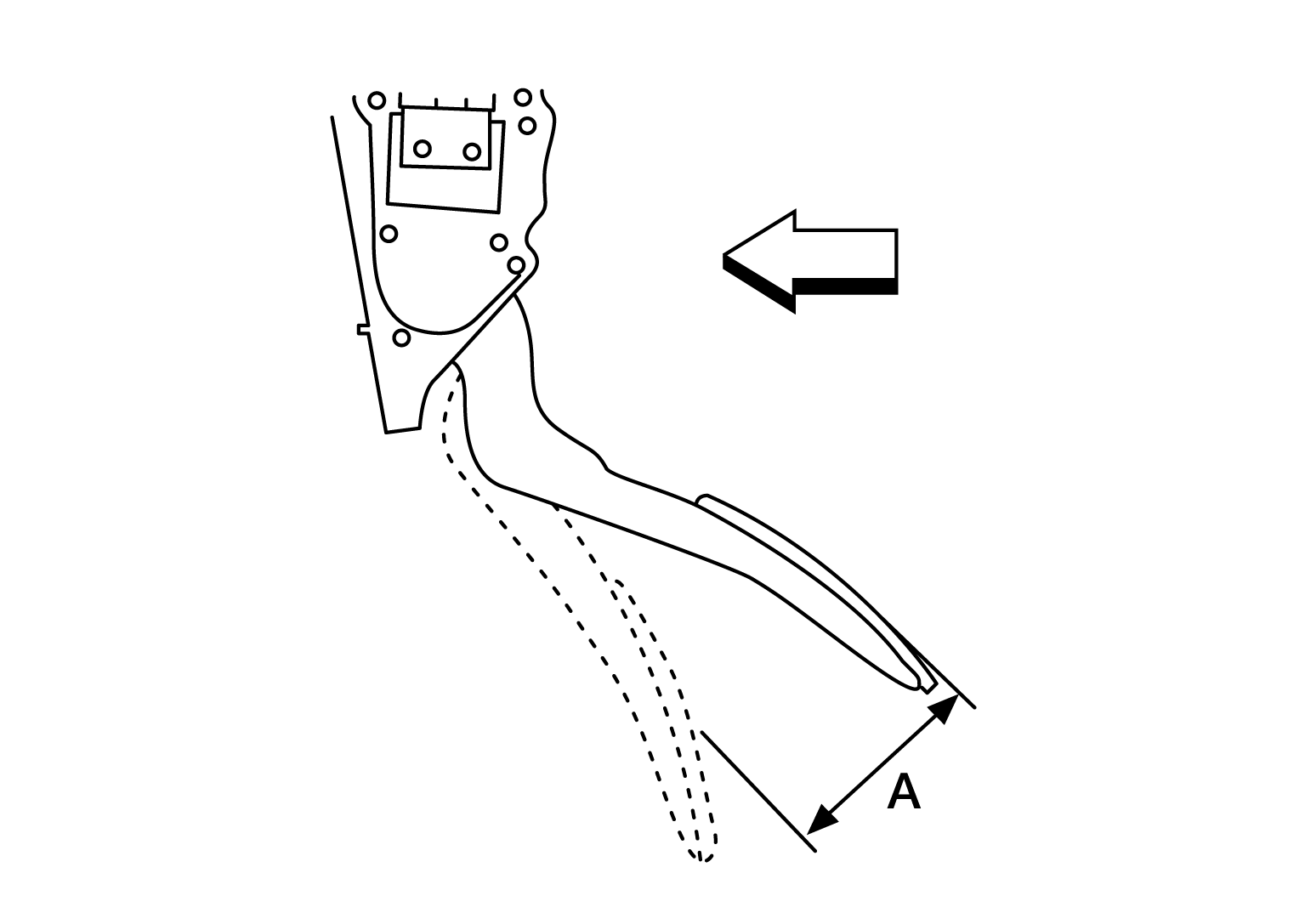

Accelerator pedal stroke (A)
49.8 - 52.6 (1.96 - 2.07)
Accelerator pedal height
124.9 +10, -0 (4.92 +0.4, -0)
: Front
Courtesy of NISSAN NORTH AMERICA, INC.
