Removal And Installation: Removal

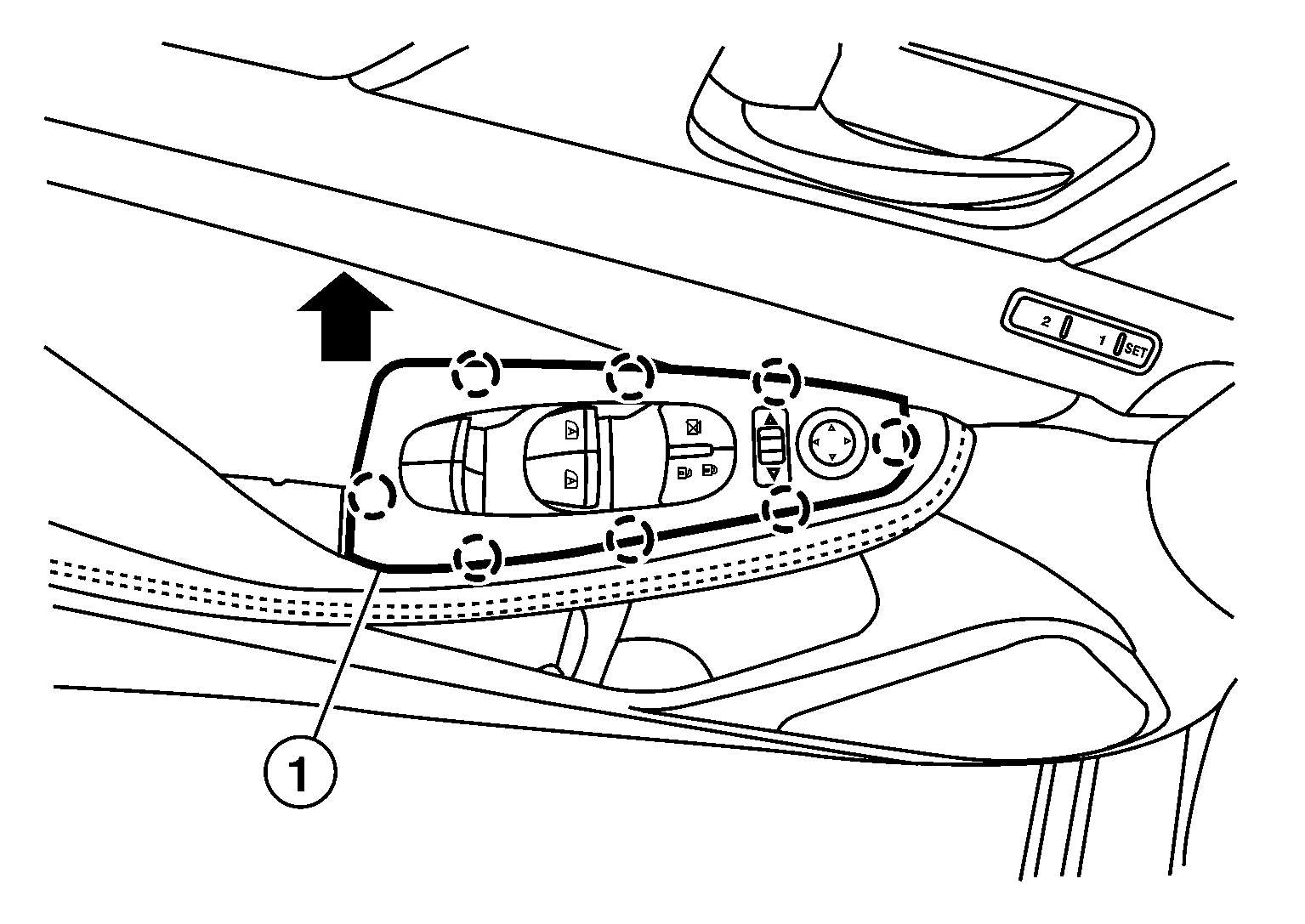

Release pawls using a suitable tool and the remove main power window and door lock/unlock switch finisher (1) upward in direction shown ( ).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

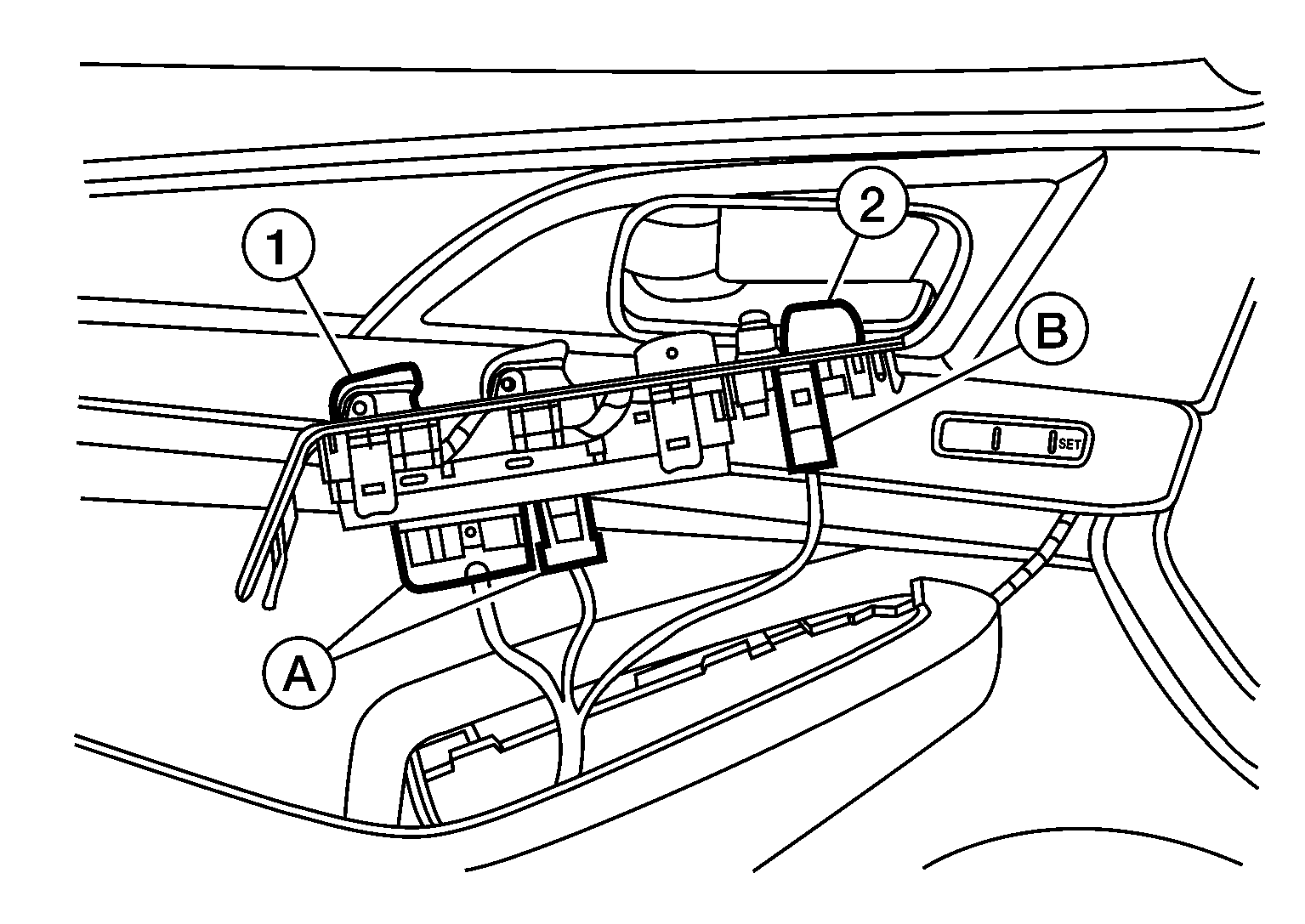

Disconnect the harness connectors (A) from the main power window and door lock/unlock switch (1) and harness connector (B) from the door mirror remote control switch (2) and remove.

Courtesy of NISSAN NORTH AMERICA, INC.

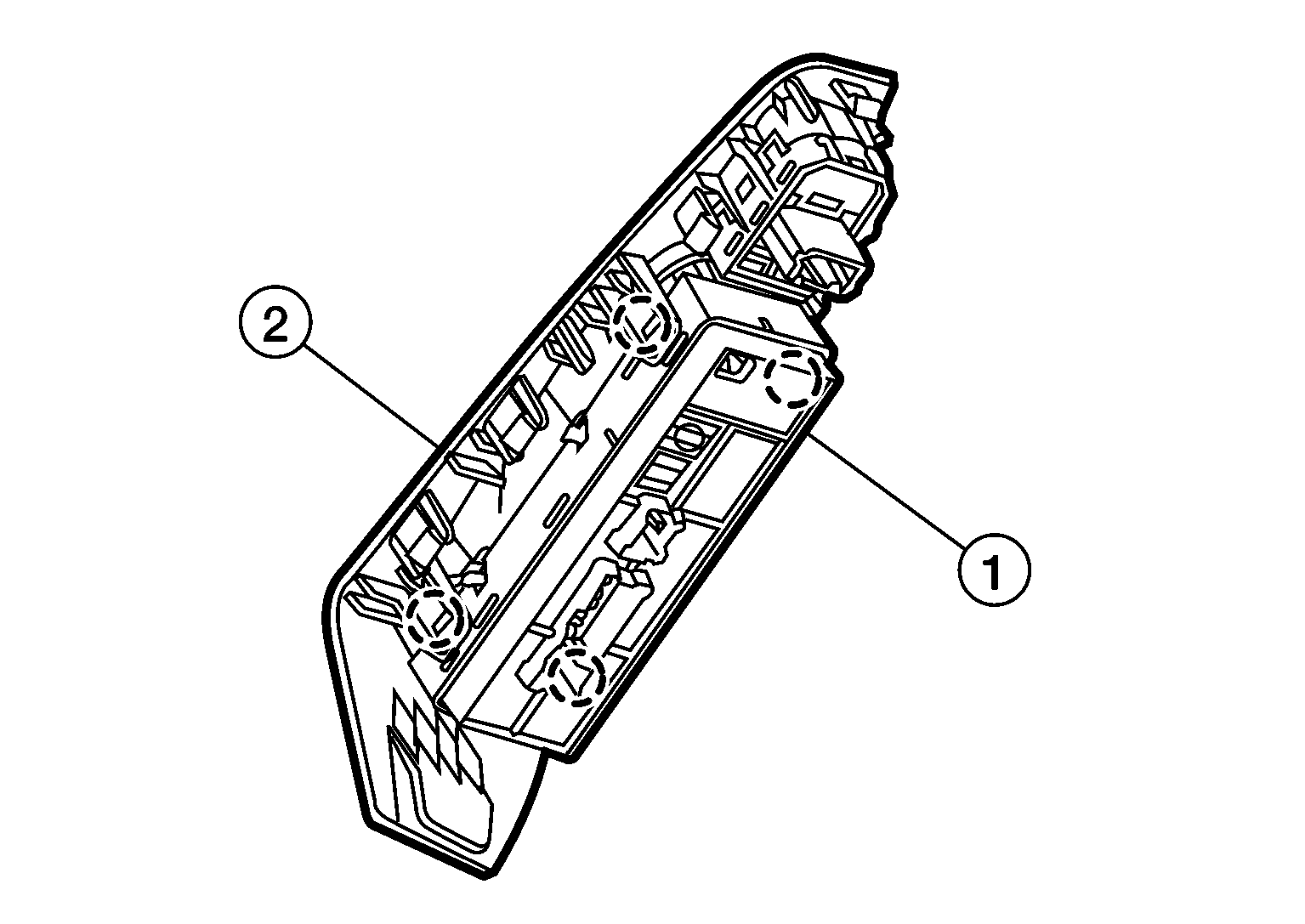

Release pawls, then remove main power window and door lock/unlock switch (1) from the switch finisher (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
