Exploded View

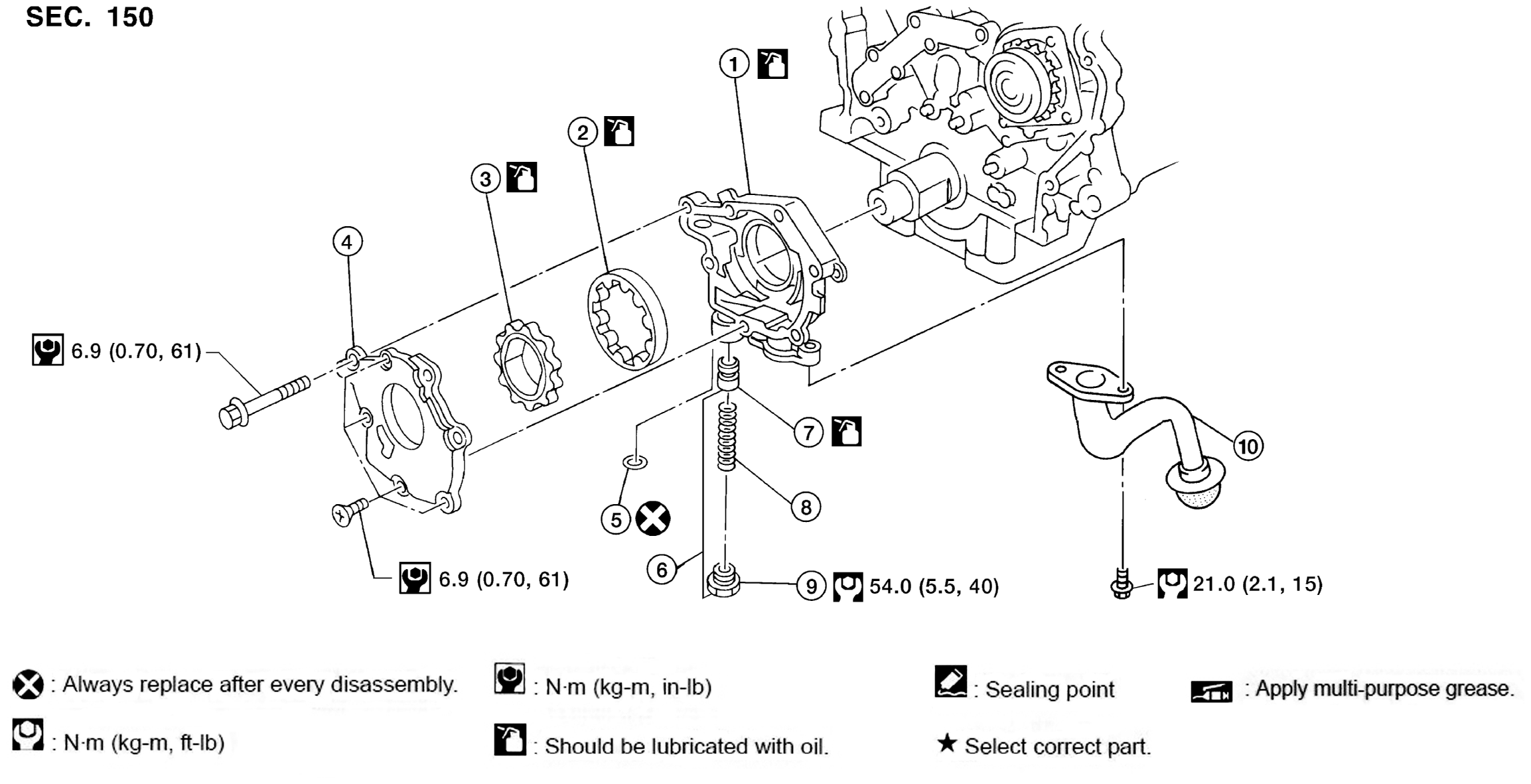

Fig 1: Oil Pump With Torque Specifications

GNSAWBIA0715ZZ-715

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump housing	2.	Outer rotor	3.	Inner rotor
4.	Oil pump cover	5.	O-ring	6.	Regulator valve set
7.	Regulator valve	8.	Spring	9.	Regulator plug
10.	Oil strainer
