Side Radar
›

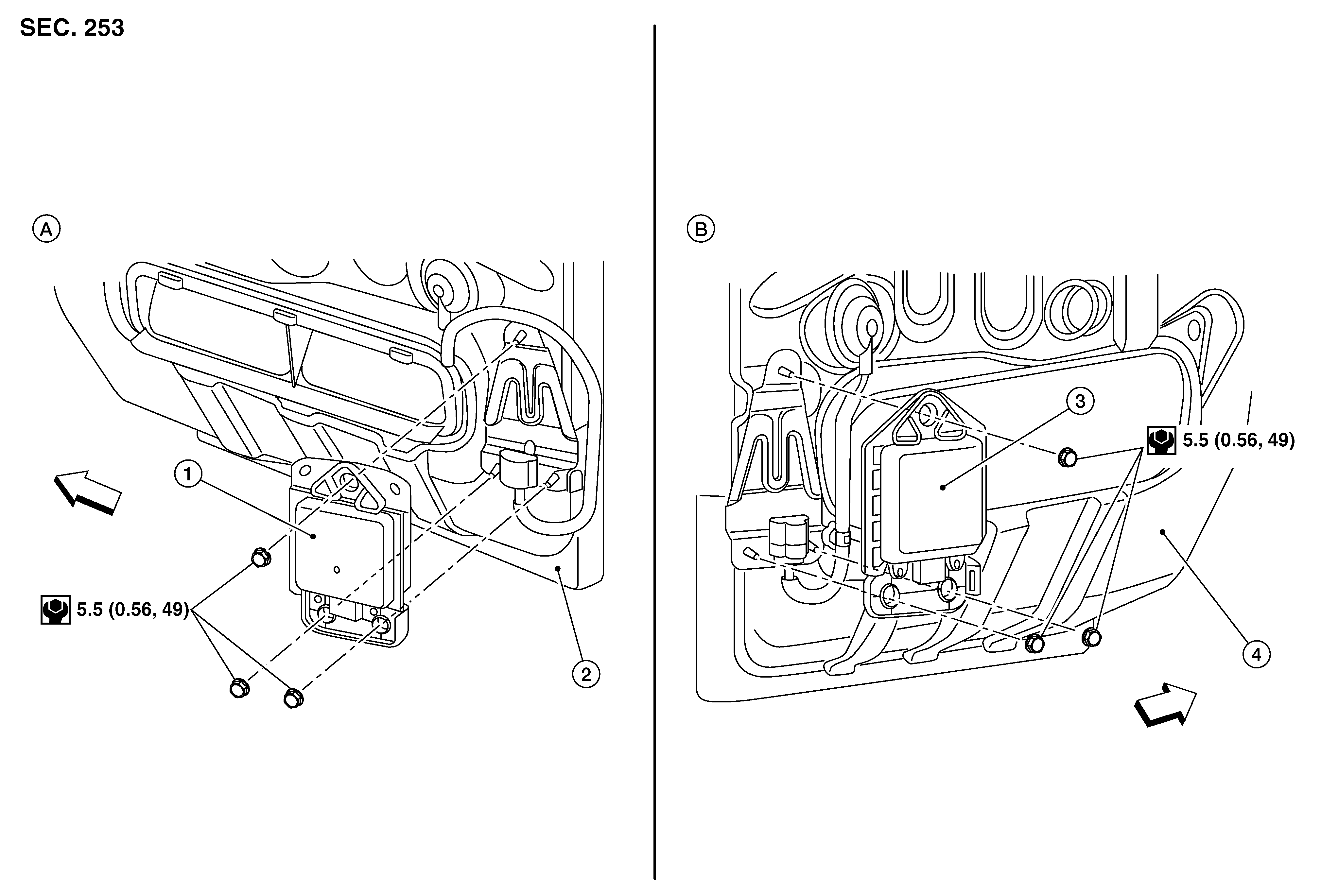

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Side radar (LH)
2.
Rear fender (LH)
3.
Side radar (RH)
4.
Rear fender (RH)
A.
LH side
B.
RH side
Front
Courtesy of NISSAN NORTH AMERICA, INC.
