Component Location

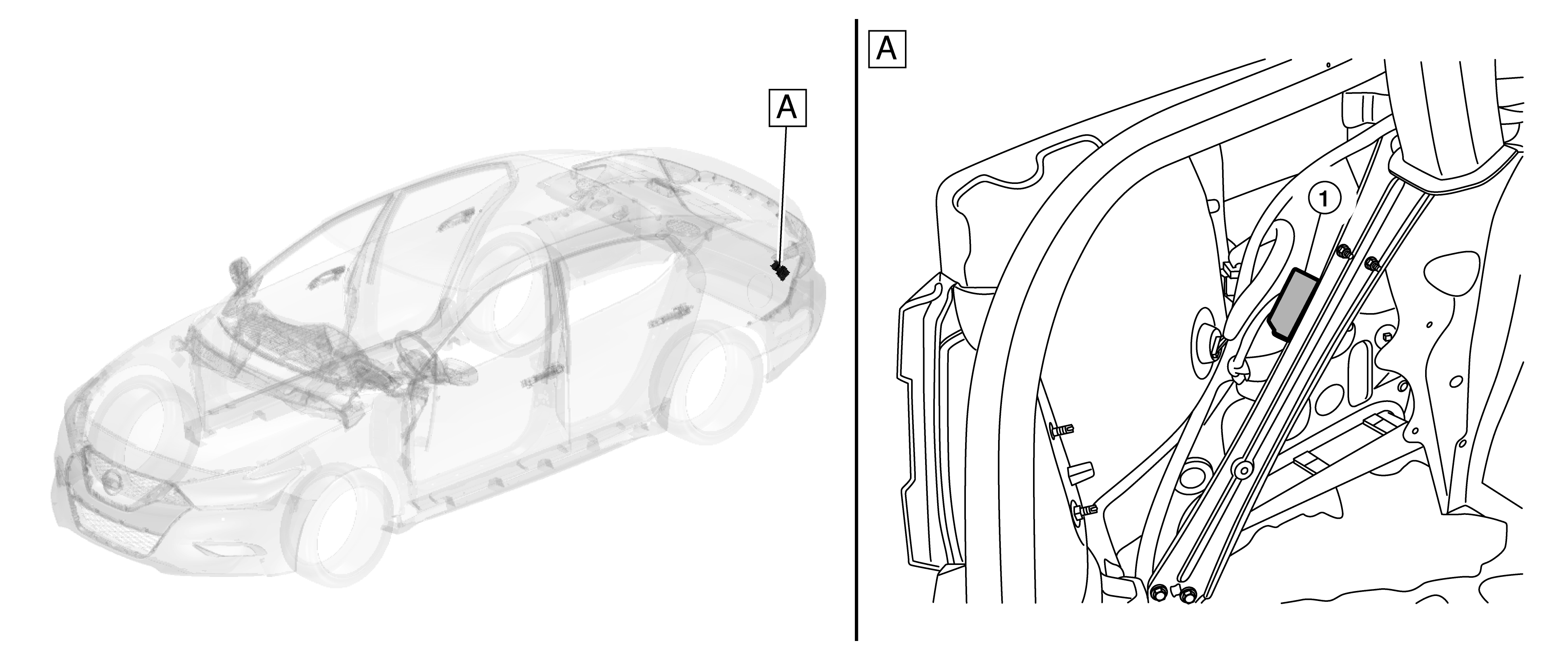

GNSDB117755Courtesy of NISSAN NORTH AMERICA, INC.
A. View with trunk side finisher LH removed.
No. Component Description
1. ADAS control unit
  • Controls each system, based on CAN communication and ITS communication signals received from each control unit.
  • Transmits signals necessary for control between CAN communication and ITS communication.
