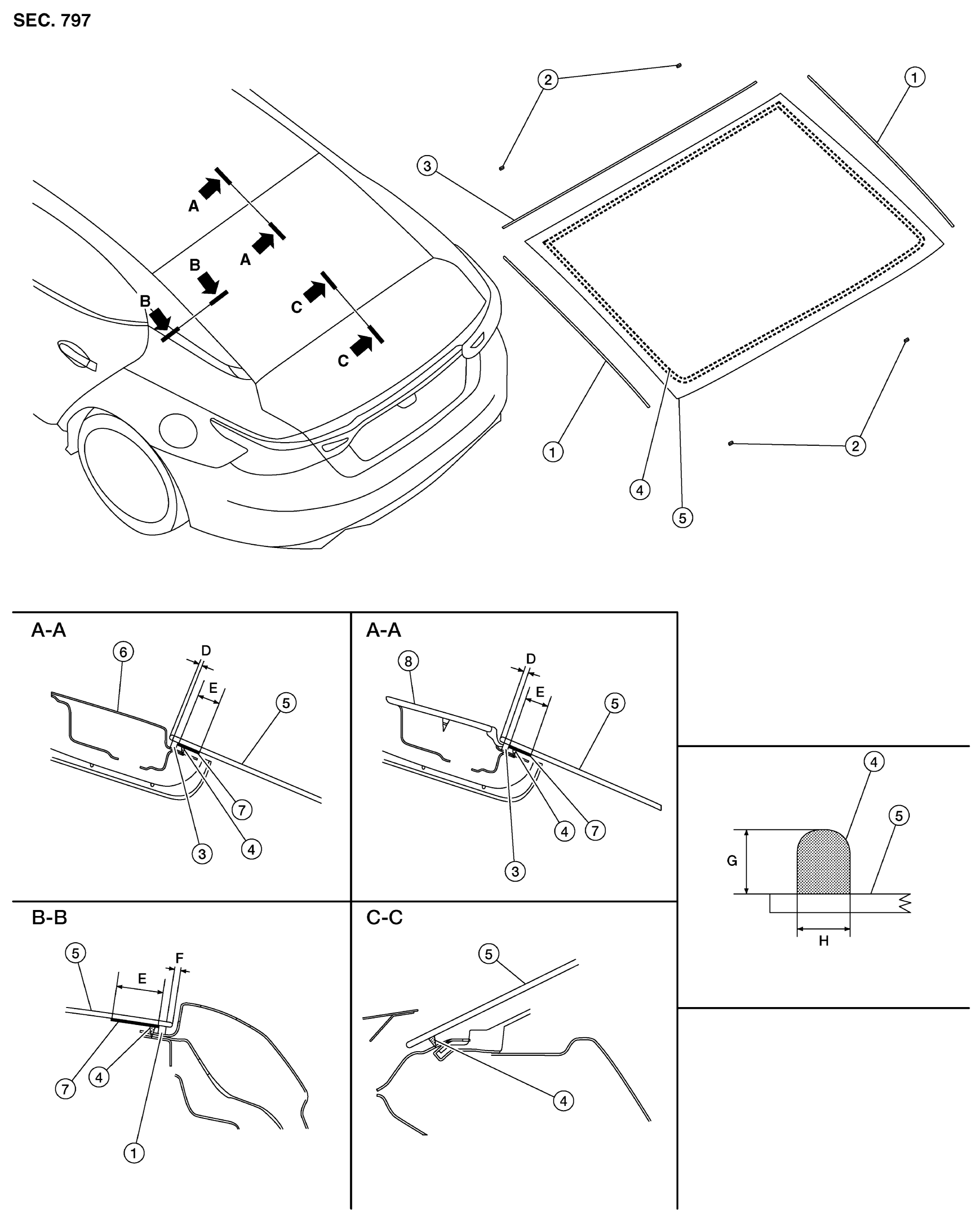

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Dam sealant rubber (side)	2.	Spacer	3.	Dam sealant rubber (upper)
4.	Adhesive	5.	Rear window glass	6.	Metal roof
7.	Glass primer	8.	Double panel sunroof	D.	2.7 mm (0.11 in)
E.	16 +2, -0 mm (0.63 +0.08, -0 in)	F.	4 mm (0.16 in)	G.	12 +2, -0 mm (0.47 +0.08, -0 in)
H.	7 +2, -0 mm (0.28 +0.08, -0 in)
