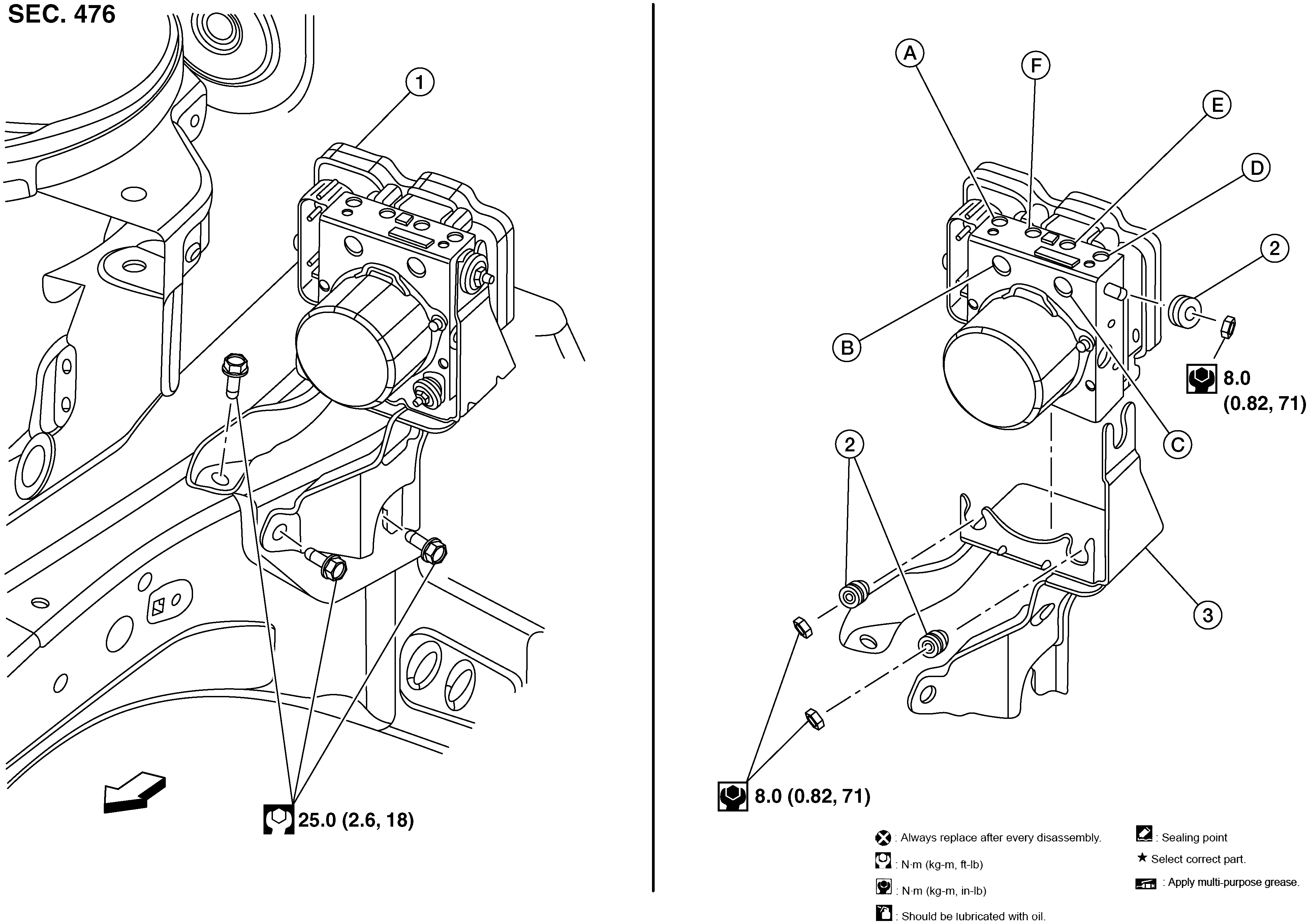

| 1. |
ABS actuator and electric unit (control unit) |
2. |
Bushings |
3. |
Bracket |
| A. |
To rear RH brake caliper |
B. |
From master cylinder secondary side |
C. |
From master cylinder primary side |
| D. |
To rear LH brake caliper |
E. |
To front RH brake caliper |
F. |
To front LH brake caliper |
 |
Front |
|
|
|
|
