Steering Angle Sensor
›

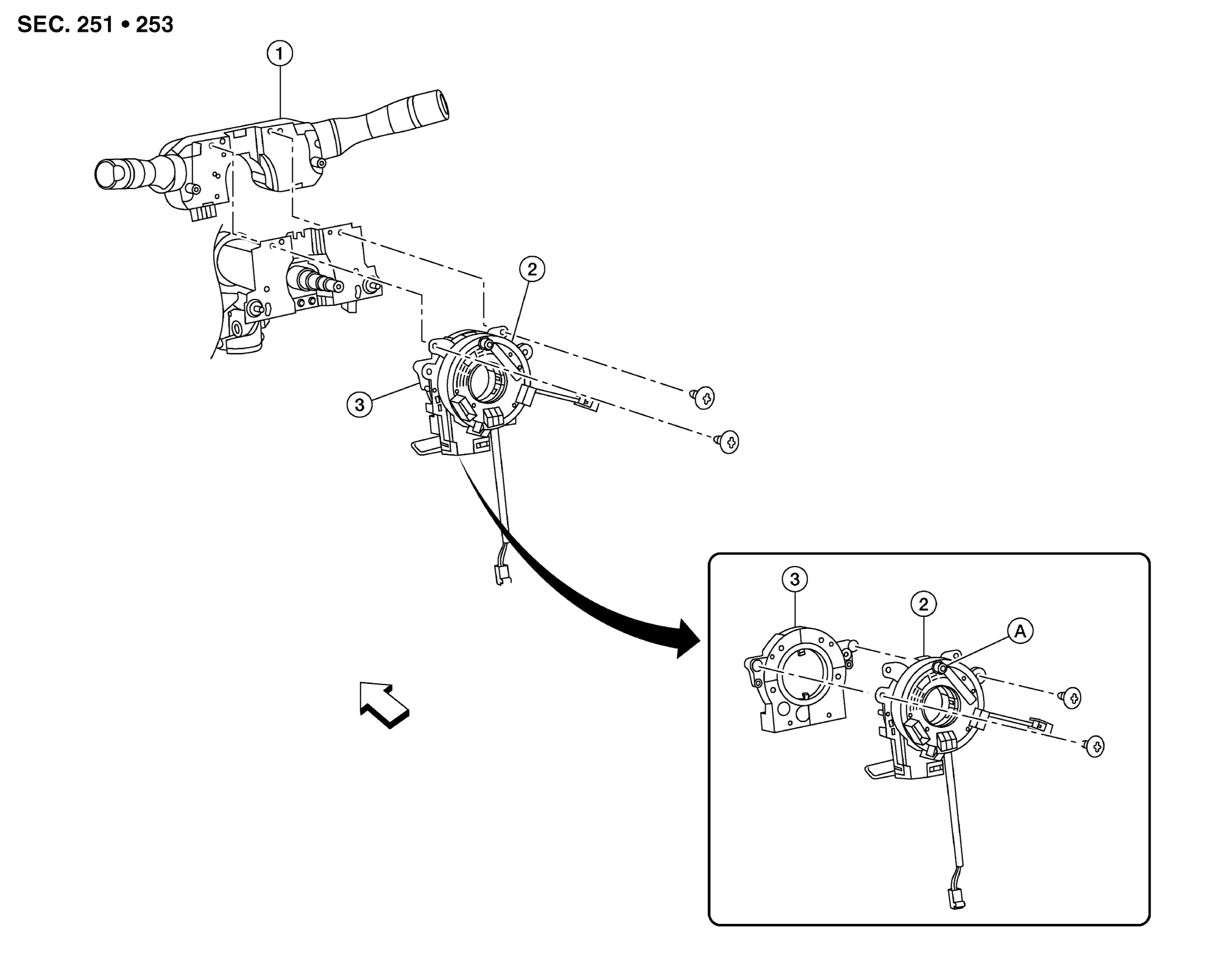

Exploded View With Torque Specifications
Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Combination switch
2.
Spiral cable
3.
Steering angle sensor
A.
Locating pin
Front
Courtesy of NISSAN NORTH AMERICA, INC.
