EVAP Canister Vent Control Valve
›

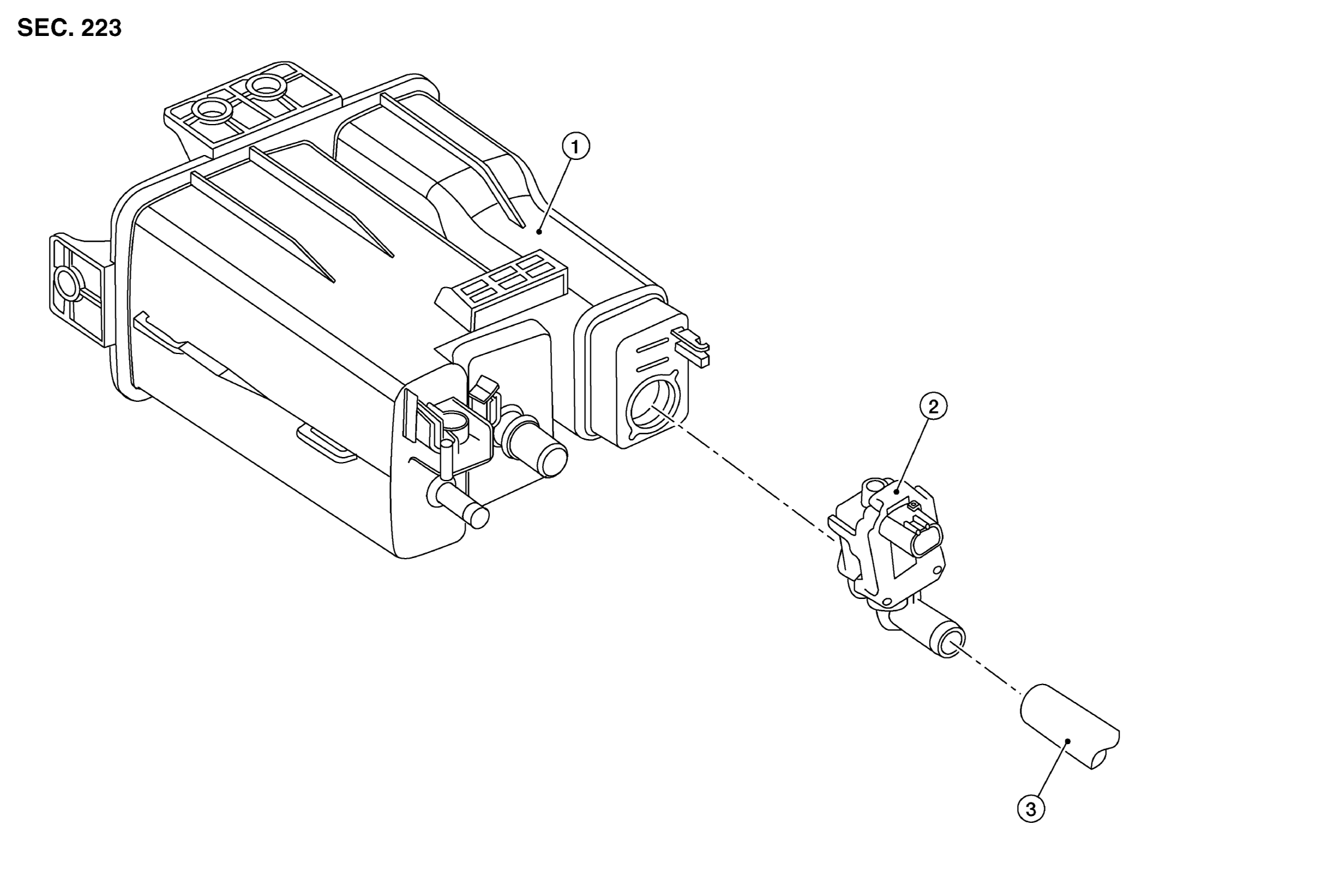

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
EVAP canister
2.
EVAP canister vent control valve (with O-ring)
3.
EVAP canister vent control valve hose
