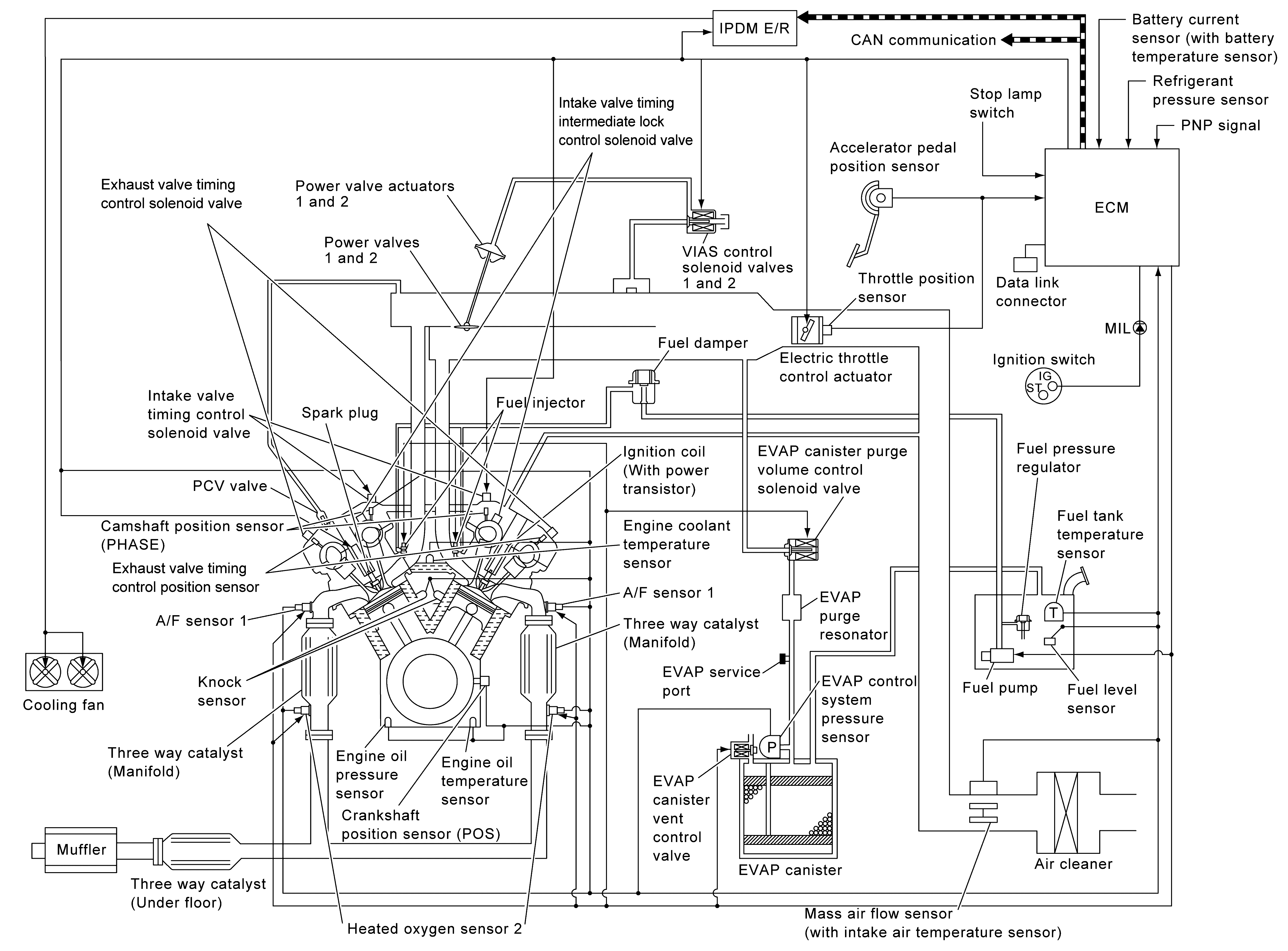

Home › Nissan-Datsun › 2017 › Maxima SL › Repair and Diagnosis › Engine Performance › Testing & Diagnosis › Engine Control System (Introduction) › System Description › System › Engine Control System › System Description › System Diagram
