Exploded View

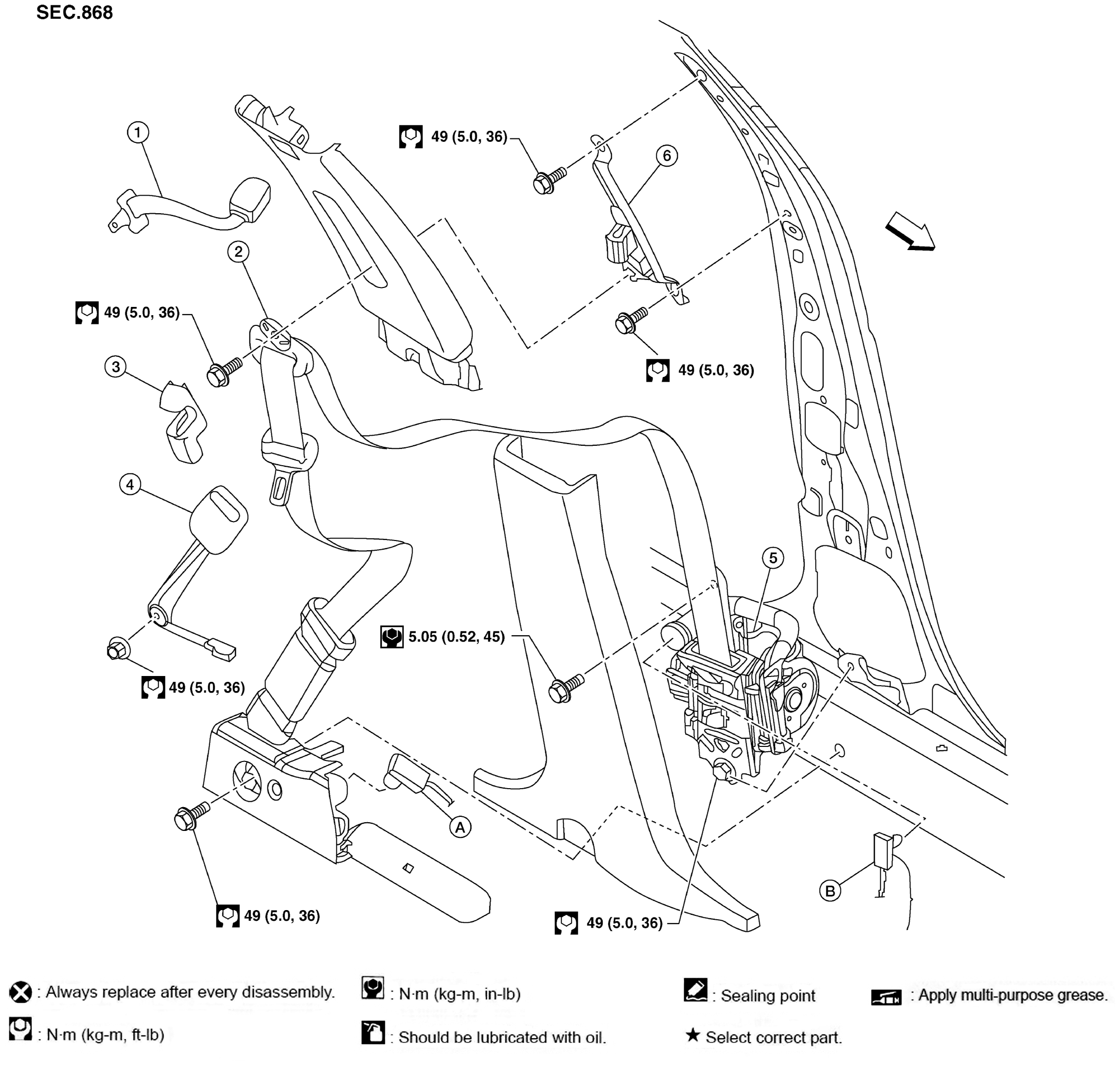

Fig 1: Front Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt extender	2.	D-ring anchor	3.	Seat belt height adjuster cover
4.	Seat belt buckle	5.	Seat belt retractor	6.	Seat belt height adjuster
A.	Lap belt pre-tensioner harness connector	B.	Shoulder belt pre-tensioner harness connector		Front
