Exploded View

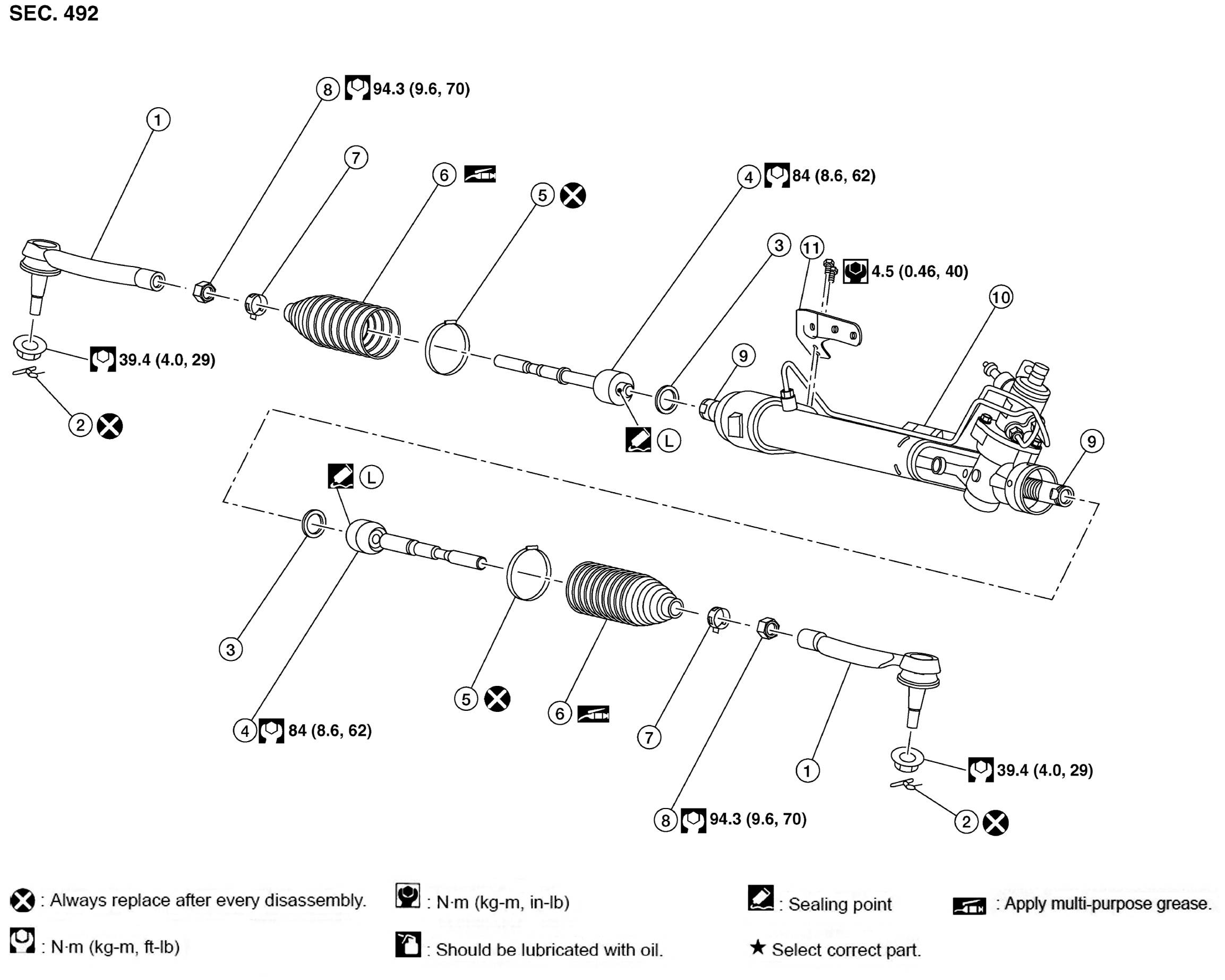

Fig 1: Steering Gear And Linkage Unit Disassembly And Assembly With Torque Specifications

GNSAWGIA0386ZZ-386

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Cotter pin	3.	Spacer
4.	Inner socket	5.	Large boot clamp	6.	Boot
7.	Small boot clamp	8.	Inner socket lock nut	9.	Rack bar (not serviceable)
10.	Steering gear	11.	Bracket
