Exploded View

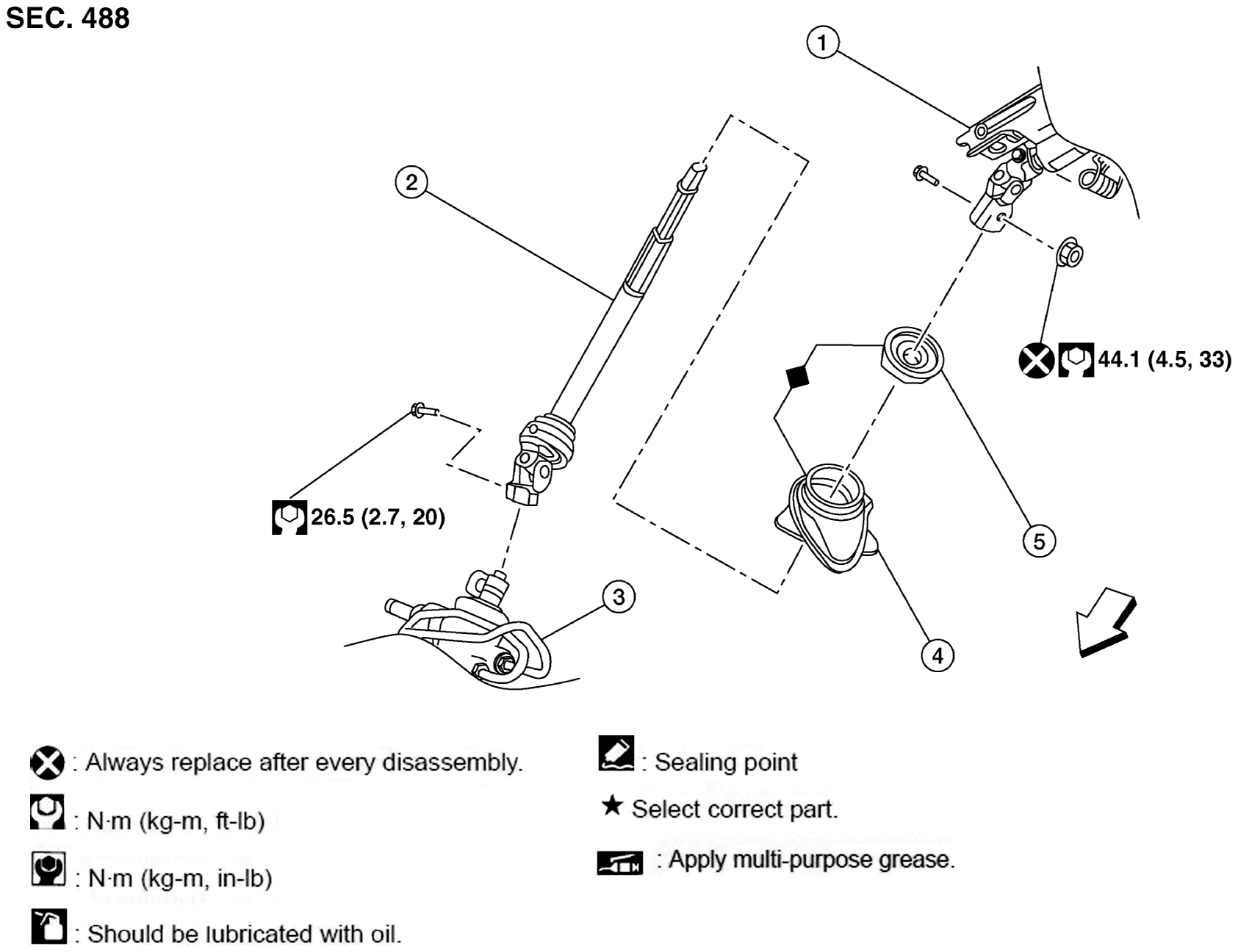

Fig 1: Lower Joint With Torque Specifications
GNSAWGIA0377ZZ-377Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Lower joint 3. Steering gear
4. Hole cover 5. Hole cover seal SHIKAKU-B Replace as a set.
ARROW Front
