Exploded View

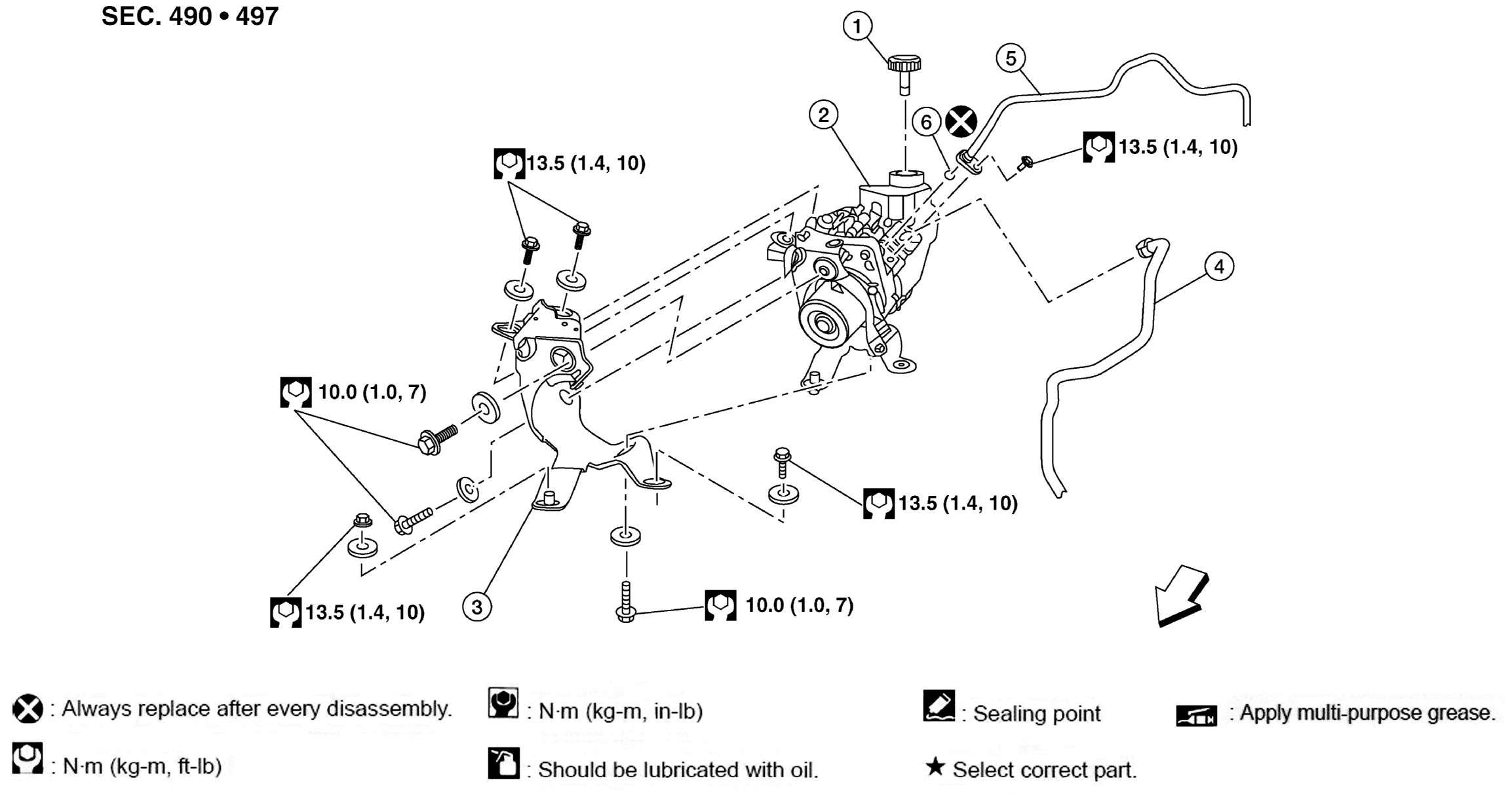

Fig 1: Power Steering Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering reservoir cap	2.	Power steering oil pump	3.	Power steering oil pump bracket
4.	Low-pressure piping	5.	High-pressure piping	6.	O-ring
	Front
