Maxima SL
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering System
›
Unit Removal And Installation
›
Steering Gear And Linkage
›
Exploded View
Exploded View

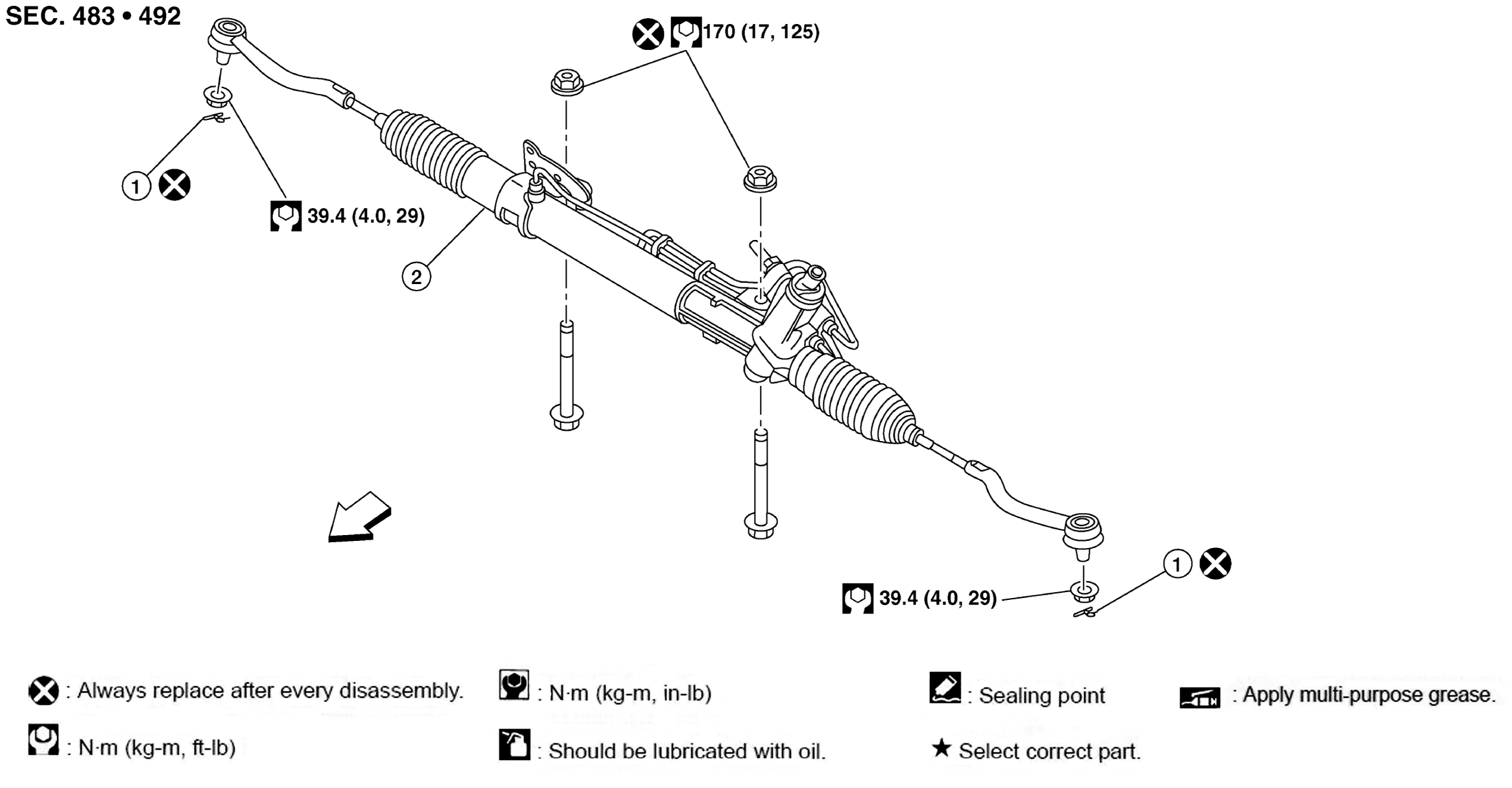

Fig 1: Steering Gear And Linkage Unit Removal And Installation With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cotter pin
2.
Steering gear
Front
Courtesy of NISSAN NORTH AMERICA, INC.
