FixVault
Home
›
Nissan-Datsun
›
2017
›
Maxima SL
›
Repair and Diagnosis
›
Steering
›
Steering Linkage
›
Steering System
›
Removal And Installation
›
Steering Wheel
›
Exploded View
Exploded View

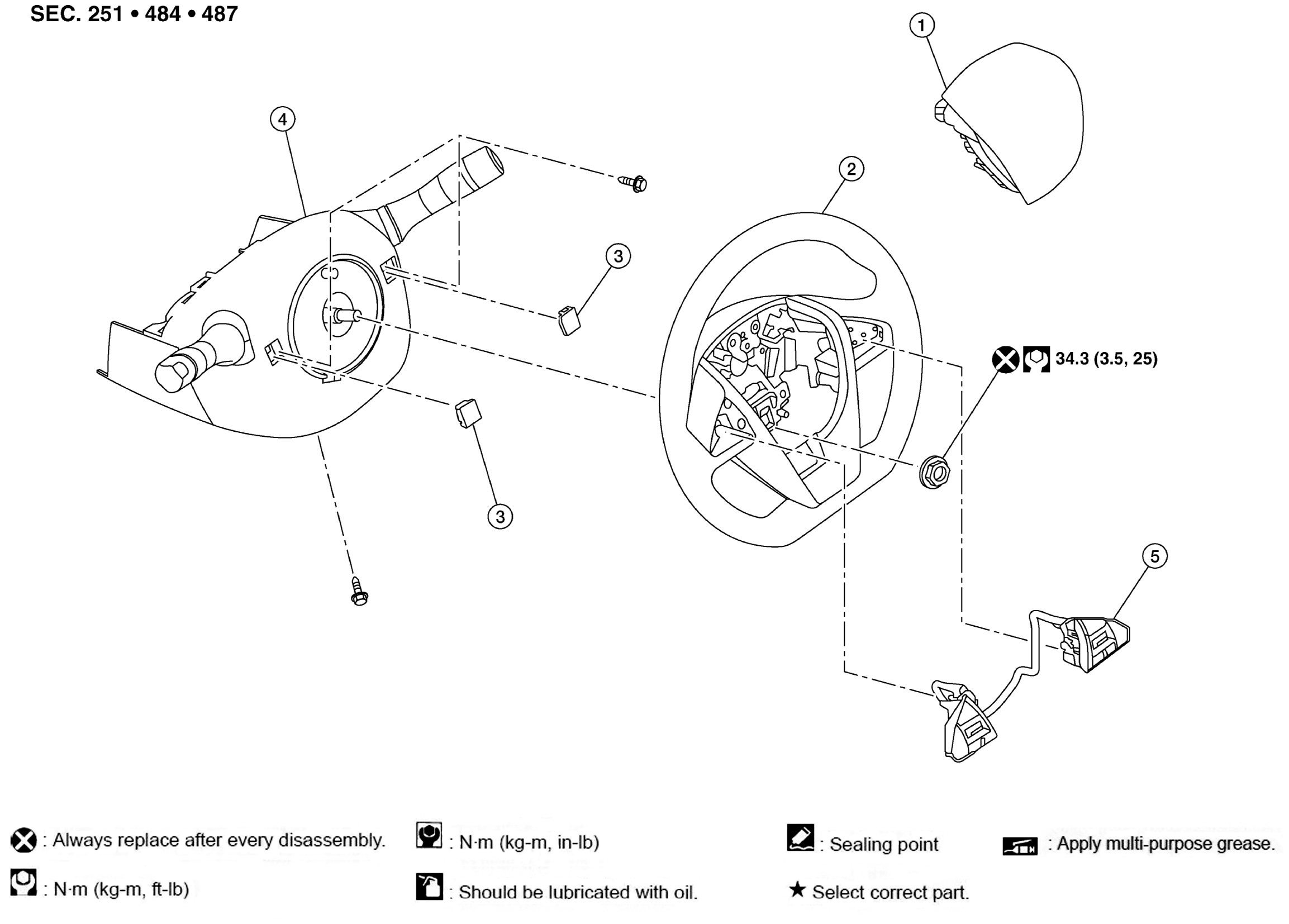

Fig 1: Steering Wheel With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Driver air bag module
2.
Steering wheel
3.
Cover
4.
Steering column cover
5.
Steering wheel switches
Courtesy of NISSAN NORTH AMERICA, INC.
