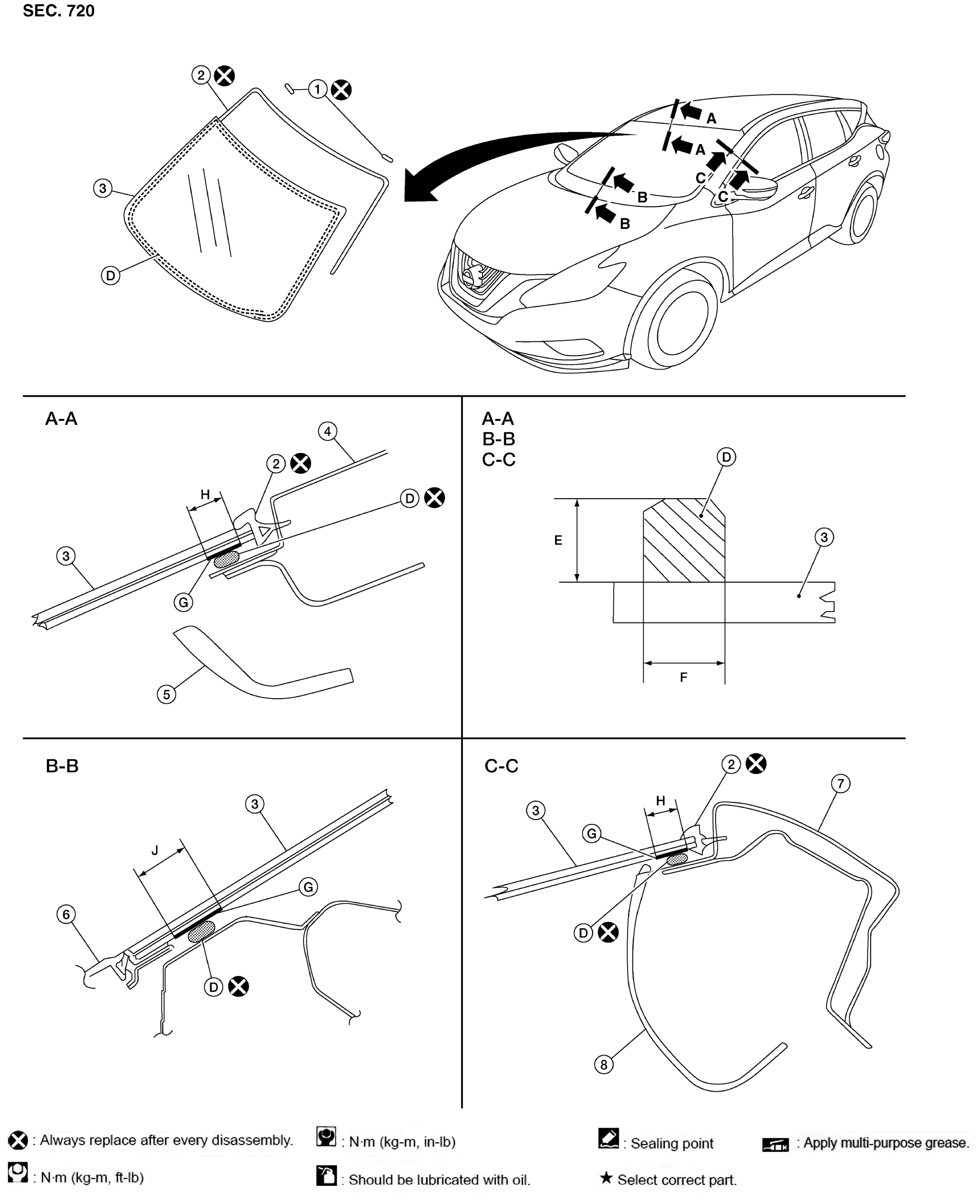

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Spacer	2.	Windshield glass molding	3.	Windshield glass
4.	Roof	5.	Headlining	6.	Cowl top cover
7.	Body side outer	8.	Front pillar finisher	D.	Adhesive
E.	12 mm (0.47 in)	F.	7.0 mm (0.28 in)	G.	Primer
H.	16 mm (0.63 in)	J.	25 mm (0.98 in)
