Removal And Installation: Removal

  1. Disconnect the harness connector (A) from the EVAP control system pressure sensor.
    G08162298Courtesy of NISSAN NORTH AMERICA, INC.

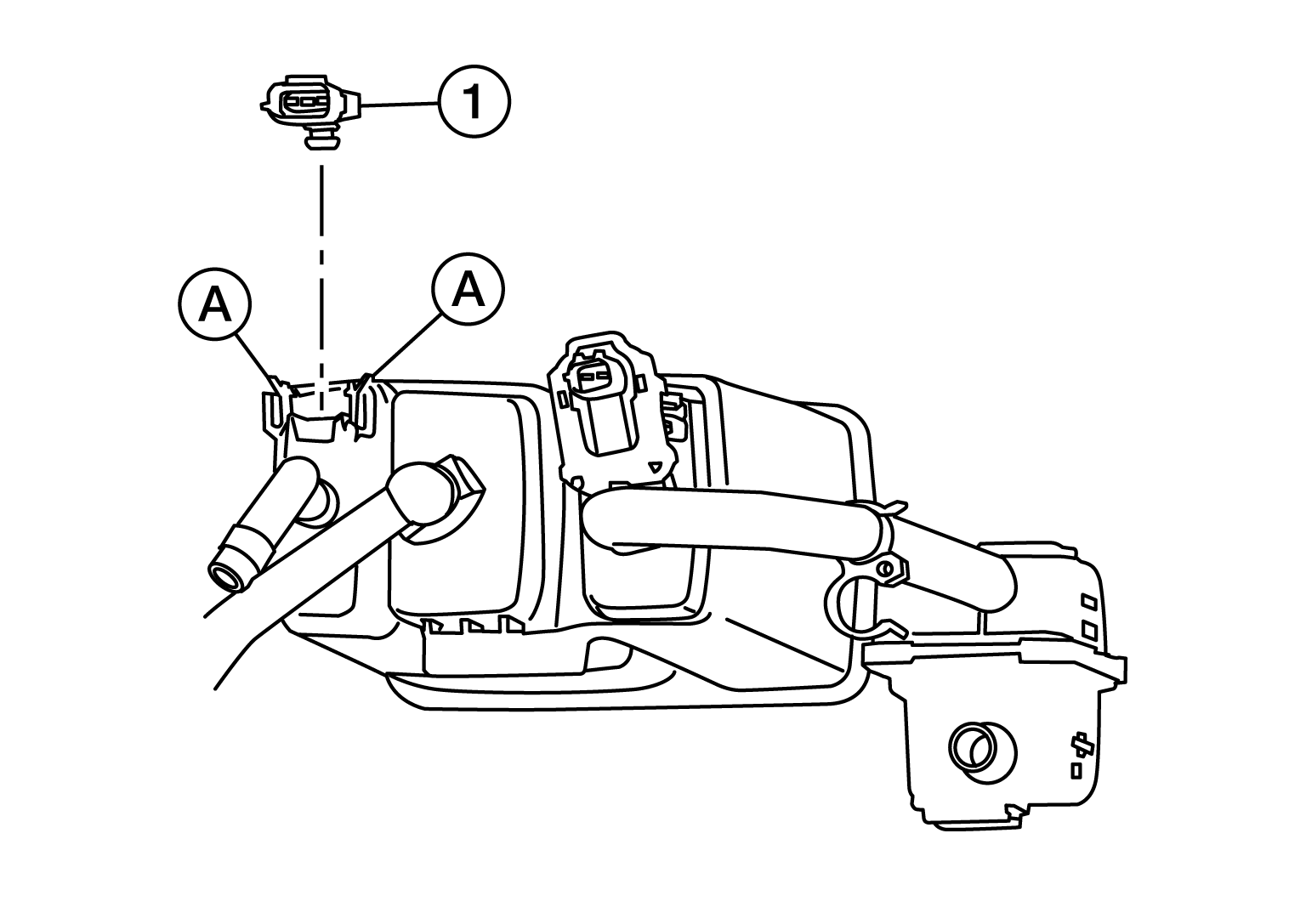

  2. Release the locking tabs (A) and remove the EVAP control system pressure sensor (1).
    GNSAWBIA3362ZZ-362Courtesy of NISSAN NORTH AMERICA, INC.
