Service Data And Specifications (SDS)
›
Accelerator Control
Accelerator Control
Unit: mm (in)
Courtesy of NISSAN NORTH AMERICA, INC.

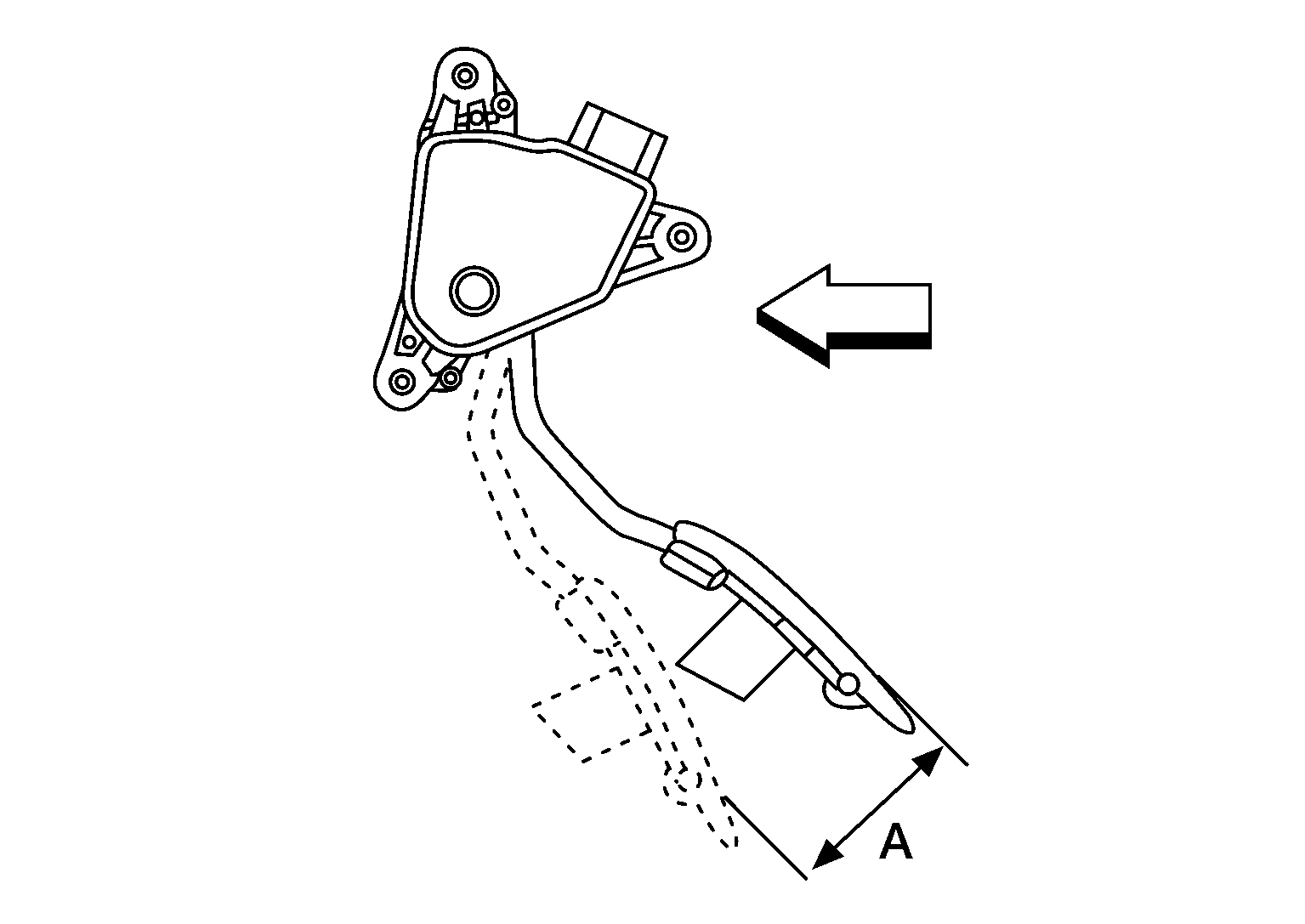

Accelerator pedal stroke (A)
47.8 - 55.0 (1.88 - 2.17)
Accelerator pedal height
147.9 - 157.9 (5.82 - 6.22)
Courtesy of NISSAN NORTH AMERICA, INC.
