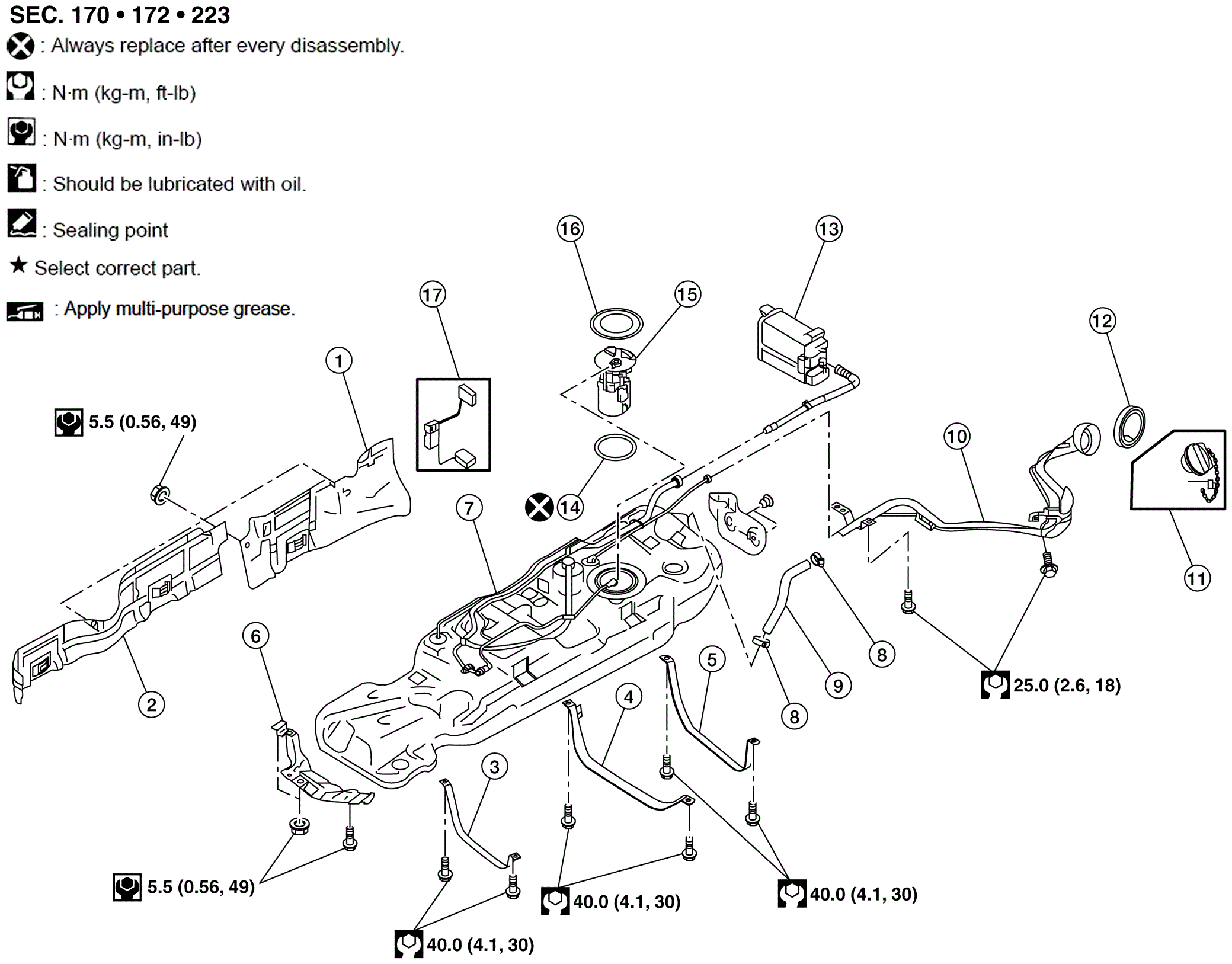

Exploded View
| 1. | Fuel tank protector | 2. | Fuel tank protector | 3. | Fuel tank mounting strap (1) |
| 4. | Fuel tank mounting strap (2) | 5. | Fuel tank mounting strap (3) | 6. | Fuel tank protector |
| 7. | Fuel tank | 8. | Clamp | 9. | Fuel filler hose |
| 10. | Fuel filler tube | 11. | Fuel filler cap and clip | 12. | Filler base grommet |
| 13. | EVAP canister | 14. | O-ring | 15. | Fuel level sensor, fuel filer and fuel pump assembly |
| 16. | Lock ring | 17 | Fuel lever sensor | Front |
