Exploded View With Torque Specifications

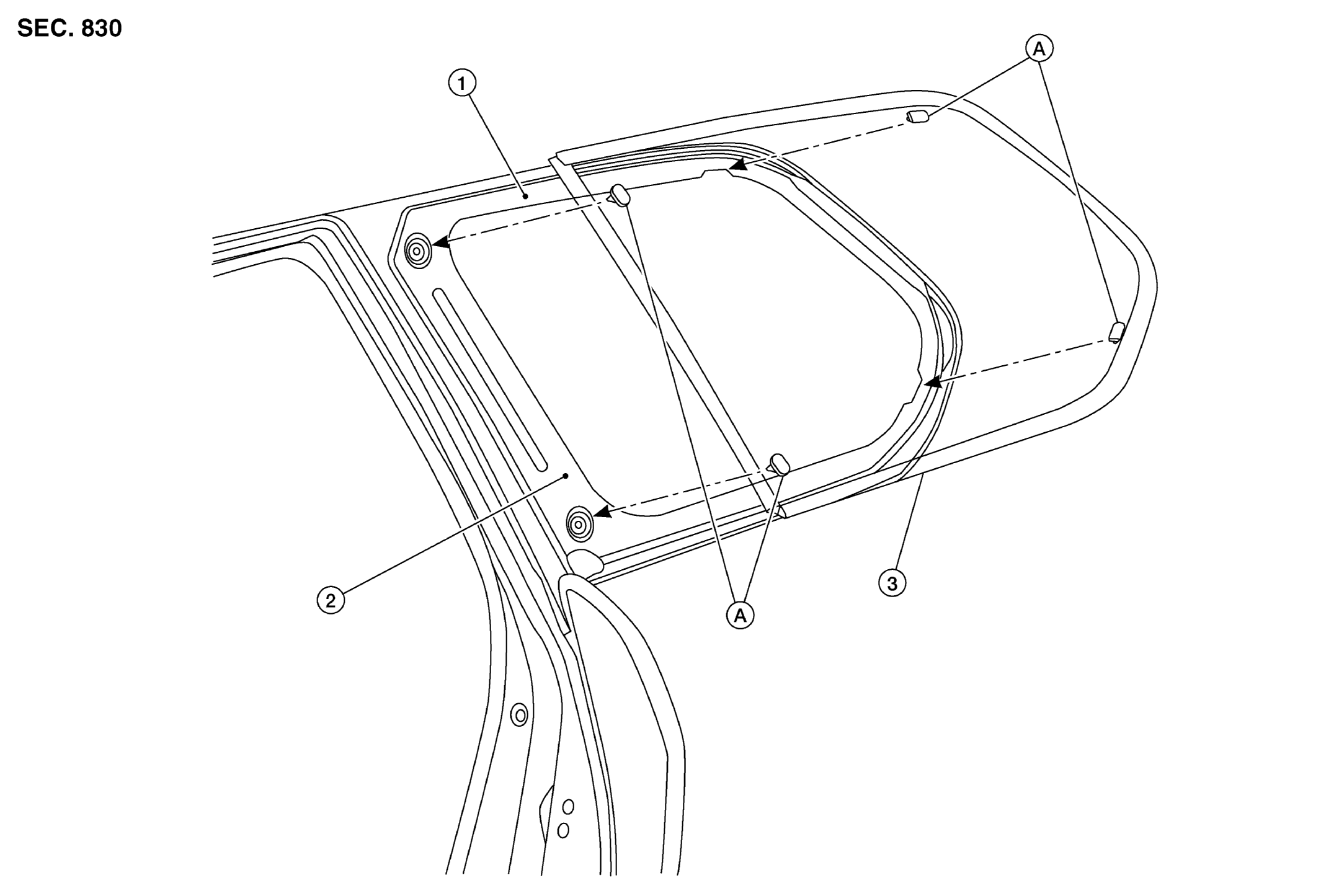

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Body side outer panel
2.
Adhesive and primer area
3. Quarter window glass
A.
Clip
Courtesy of NISSAN NORTH AMERICA, INC.
