Exploded View

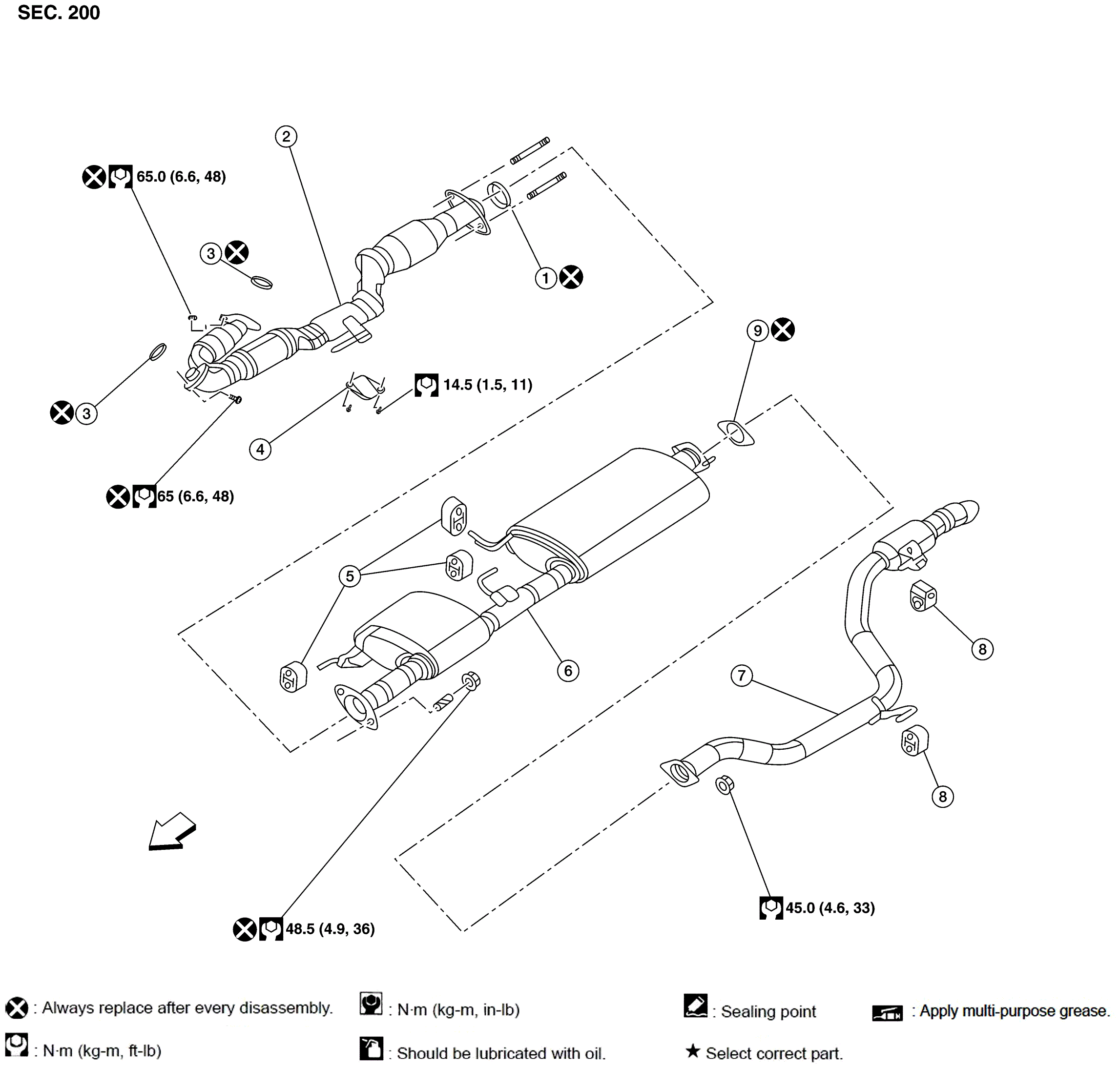

Fig 1: Exhaust System With Torque Specifications
G09404718Courtesy of NISSAN NORTH AMERICA, INC.
1. Seal bearing 2. Front exhaust tube 3. Ring gasket
4. Front exhaust tube bracket 5. Center exhaust tube rubber hanger 6. Center exhaust tube
7. Rear exhaust tube 8. Rear exhaust tube rubber hanger 9. Gasket
ARROW Front
