Exploded View

2WD

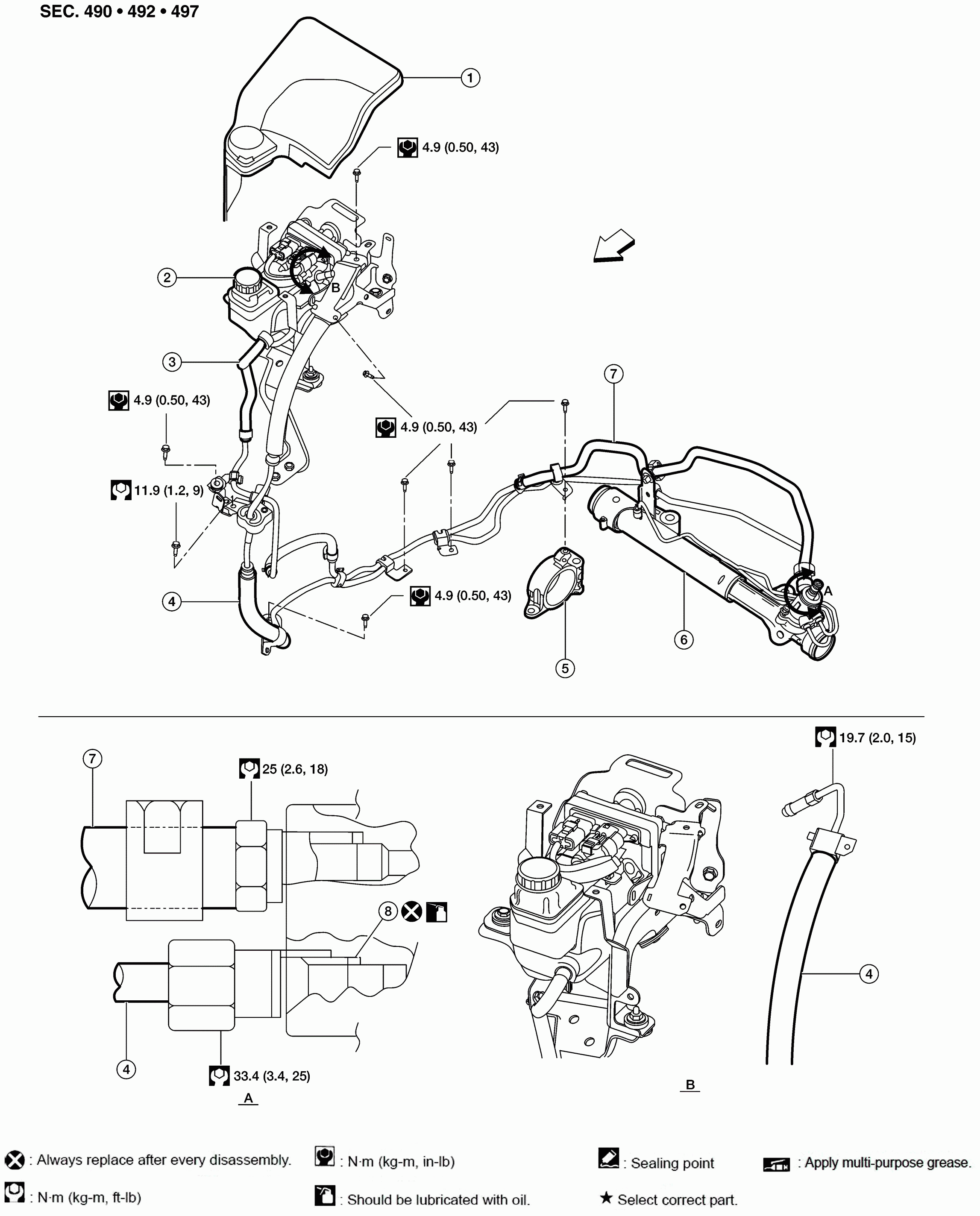

Fig 1: Hydraulic Line 2WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Power steering pump	3.	Low pressure piping (upper)
4.	High pressure piping	5.	Engine mount	6.	Power steering gear
7.	Low pressure piping (lower)	8.	O-ring	A.	Steering gear connection detail
B.	Power steering pump connection detail		Front

4WD

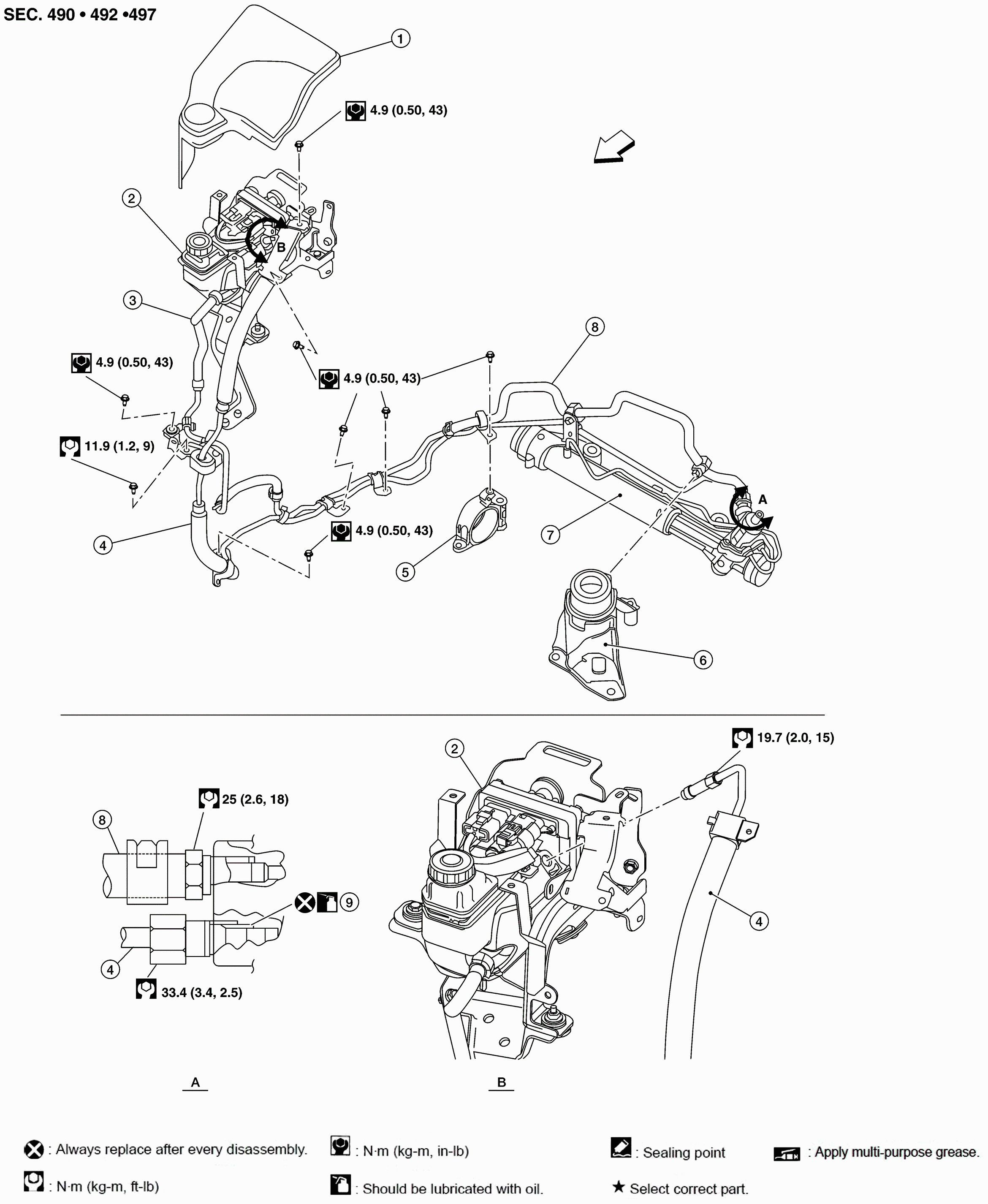

Fig 2: Hydraulic Line 4WD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Power steering pump	3.	Low pressure piping (upper)
4.	High pressure piping	5.	Engine mount	6.	Engine mount bracket
7.	Power steering gear	8.	High pressure piping (lower)	9.	O-ring
A.	Steering gear connection detail	B.	Power steering pump connection detail		Front
