Exploded View
Exploded View

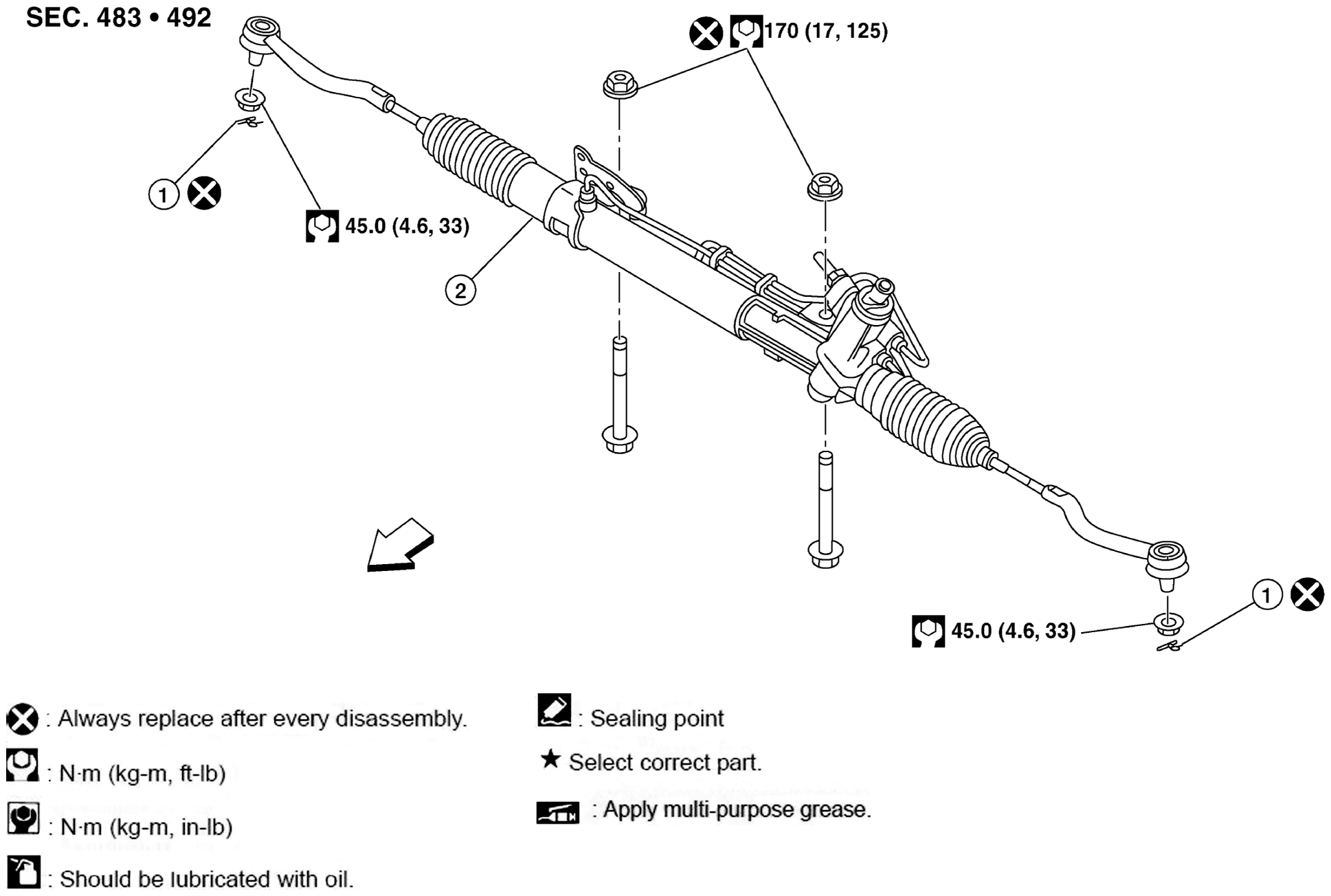

Fig 1: Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cotter pin
2.
Steering gear
Front
Courtesy of NISSAN NORTH AMERICA, INC.
