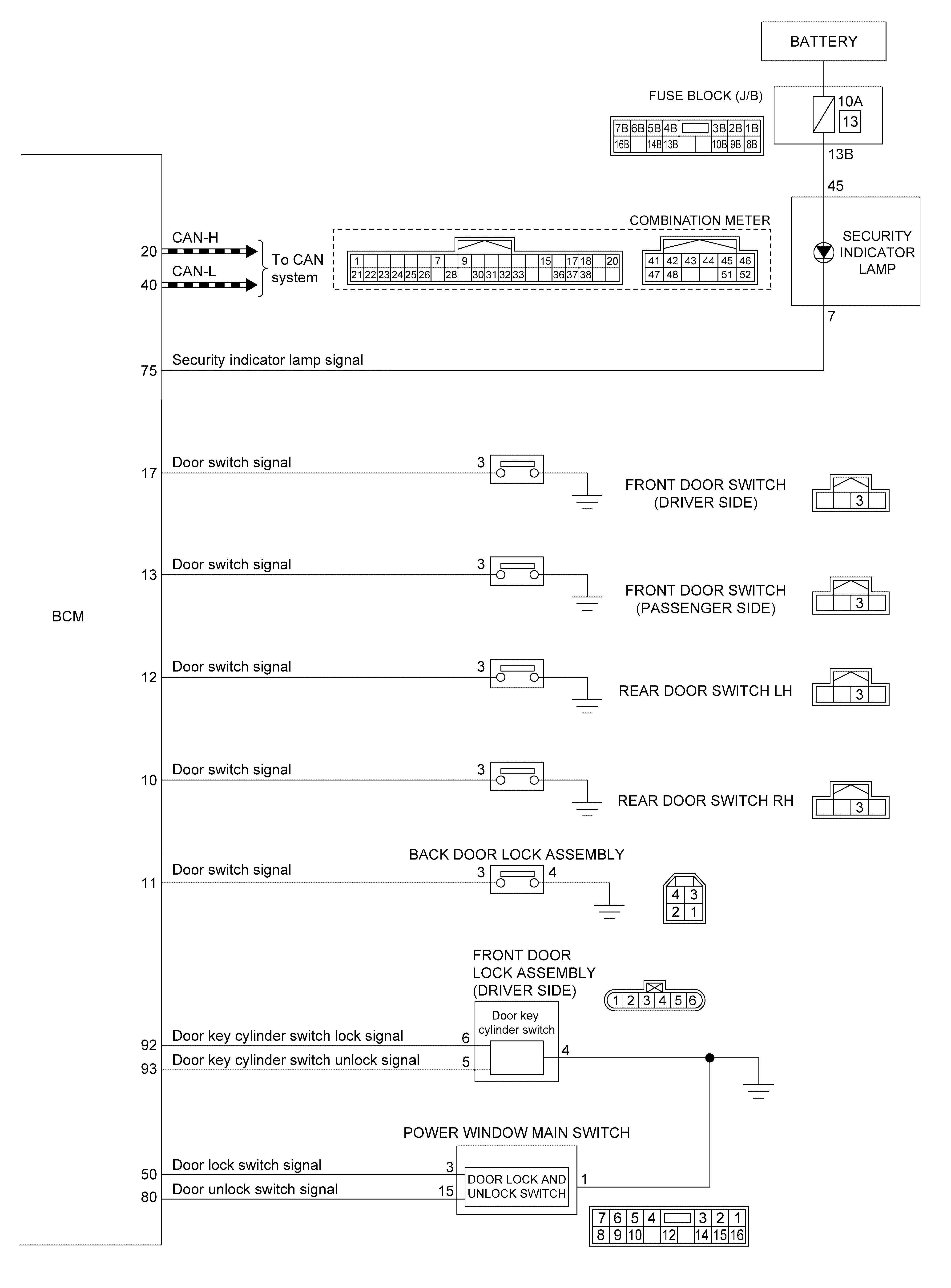

Home › Nissan-Datsun › 2017 › Qashqai SL › Repair and Diagnosis › Body & Frame › Door Locks › Security Control System (Without Intelligent Key System) › System Description › System › Vehicle Security System › Circuit Diagram
