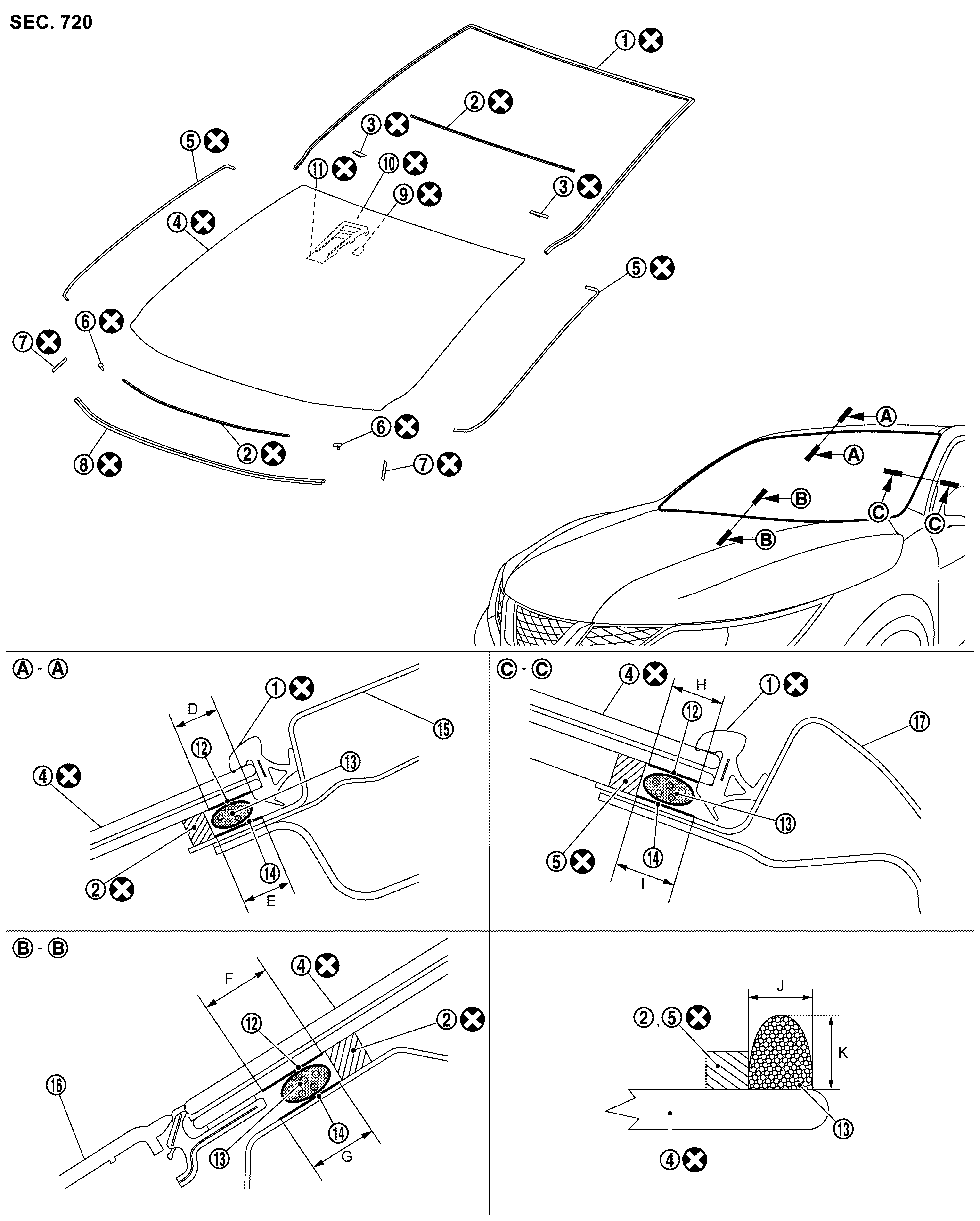

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Windshield glass upper molding		Dam sealant rubber A		Windshield glass upper spacer*
	Windshield glass		Dam sealant rubber B		Windshield glass lower spacer*
	Dam sealant rubber C		Windshield glass lower molding*		Inside mirror base*
	Electro unit bracket*		Camera bracket*		Glass primer
	Adhesive		Painted surface primer		Roof panel
	Cowl top cover		Body side outer panel
	: Always replace after every disassembly.

^* : These parts are windshield glass assembly parts.

Unit: mm (in)

Portion			Primer range	Adhesive range
				J	K
Windshield glass - Roof panel	-	D	9.0 (0.354)	7.0 (0.276)	12.0 (0.472)
		E	17.0 (0.669)	-	-
Windshield glass - Cowl top	-	F	20.0 (0.787)	7.0 (0.276)	12.0 (0.472)
		G	17.0 (0.669)	-	-
Windshield glass - Body side outer panel	-	H	9.0 (0.354)	7.0 (0.276)	12.0 (0.472)
		I	17.0 (0.669)	-	-
