Exhaust Compartment

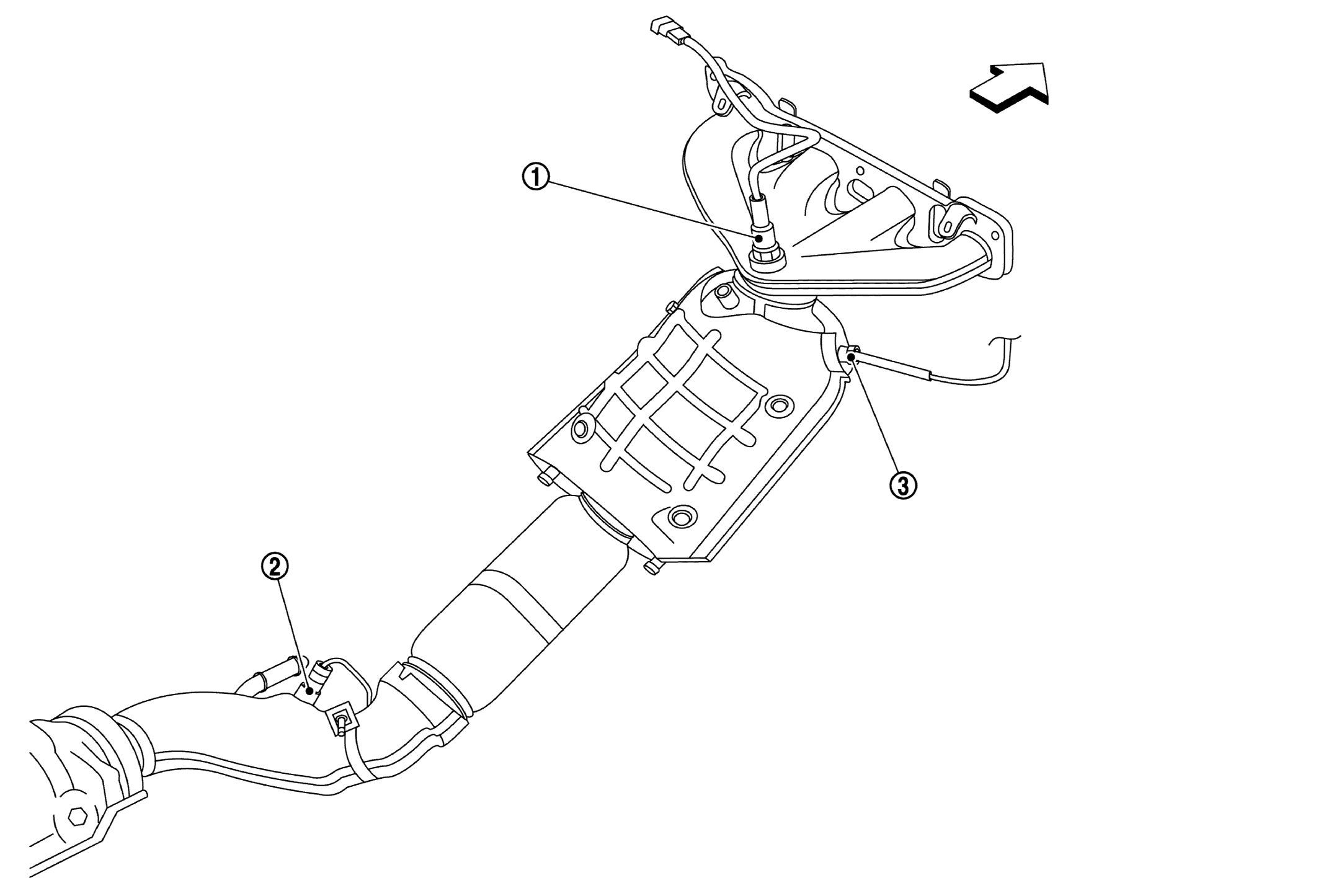

GNSJSBIA7222ZZ-222Courtesy of NISSAN NORTH AMERICA, INC.
ARROW Vehicle front
No. Component Function
WHITE-1 Air fuel ratio (A/F) sensor 1 AIR FUEL RATIO (A/F) SENSOR 1
WHITE-2 Heated oxygen sensor 2 HEATED OXYGEN SENSOR 2
WHITE-3 Exhaust gas temperature sensor EXHAUST GAS TEMPERATURE SENSOR
