Switches And Indicators

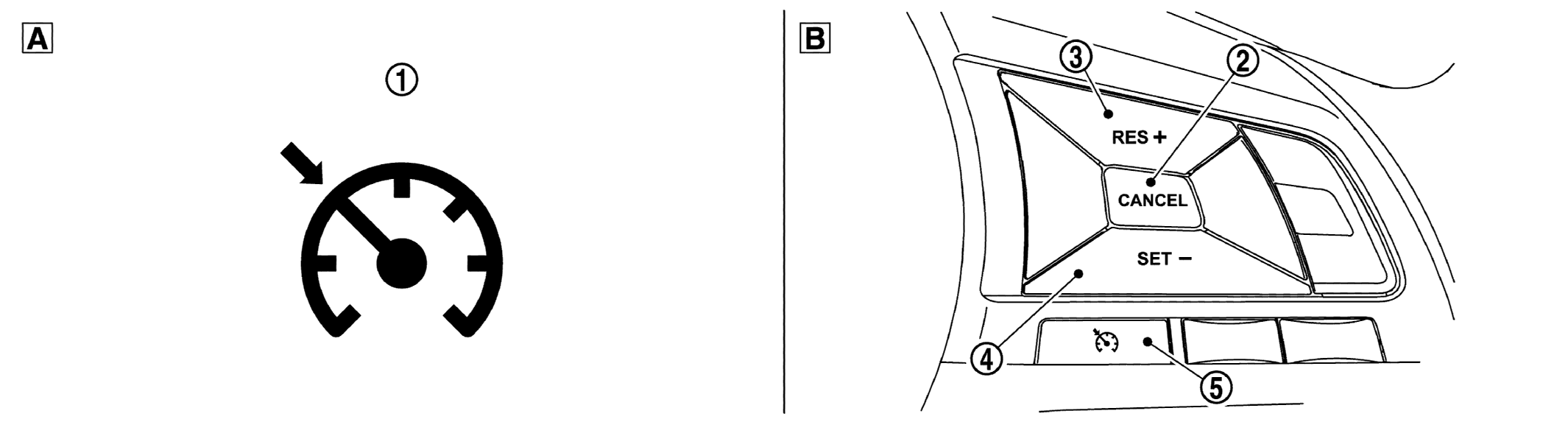

GNSJSBIB2289ZZ-289Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A On the combination meter WZ-B On the steering wheel
WHITE-1 ASCD indicator WHITE-2 CANCEL switch WHITE-3 RES + switch
(RESUME/ACCELERATE)
WHITE-4 SET - switch
(SET/COAST)		 WHITE-5 MAIN switch
