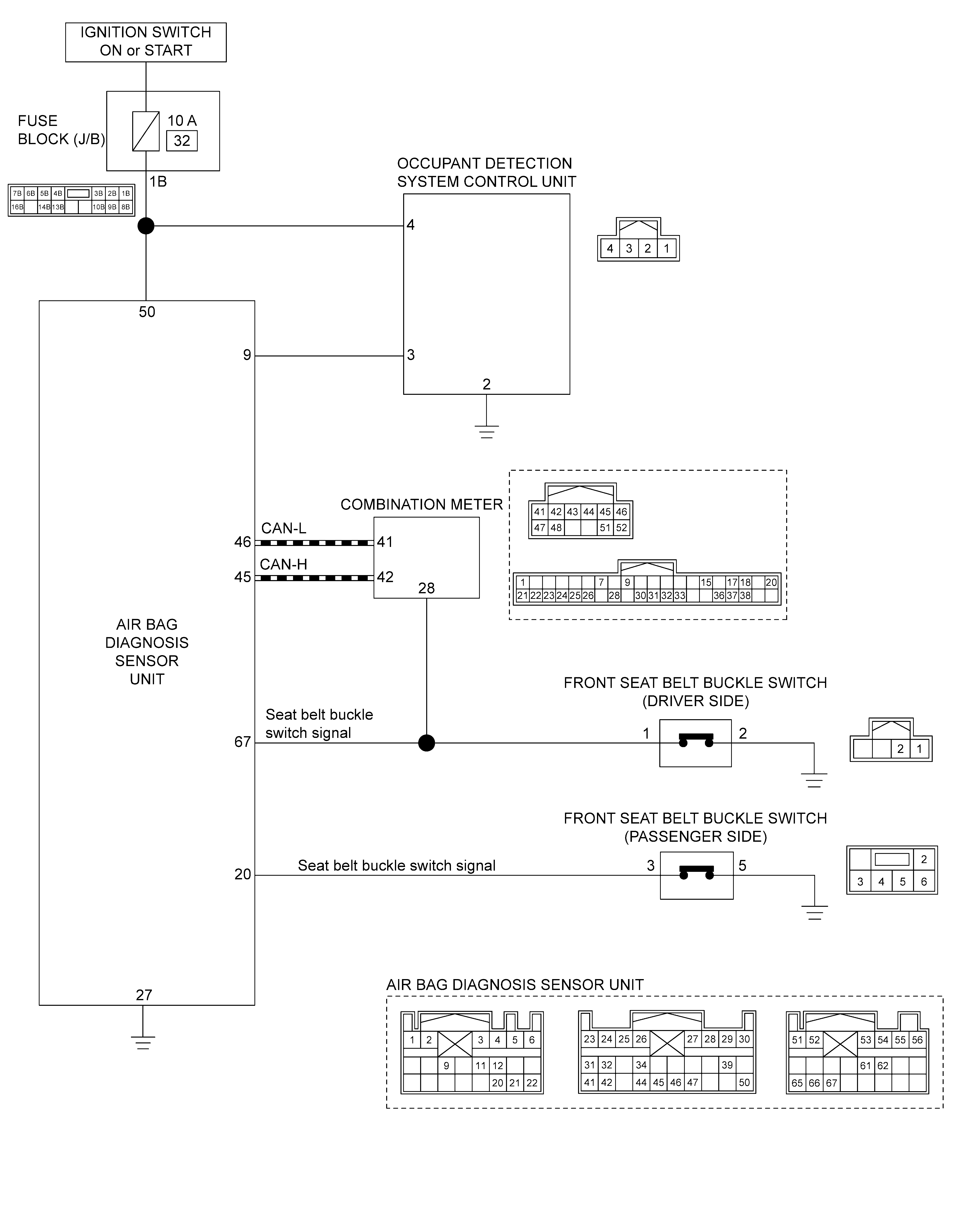

Home › Nissan-Datsun › 2017 › Qashqai SL › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt Control System › System Description › System › Seat Belt Warning Lamp Control System › Circuit Diagram
