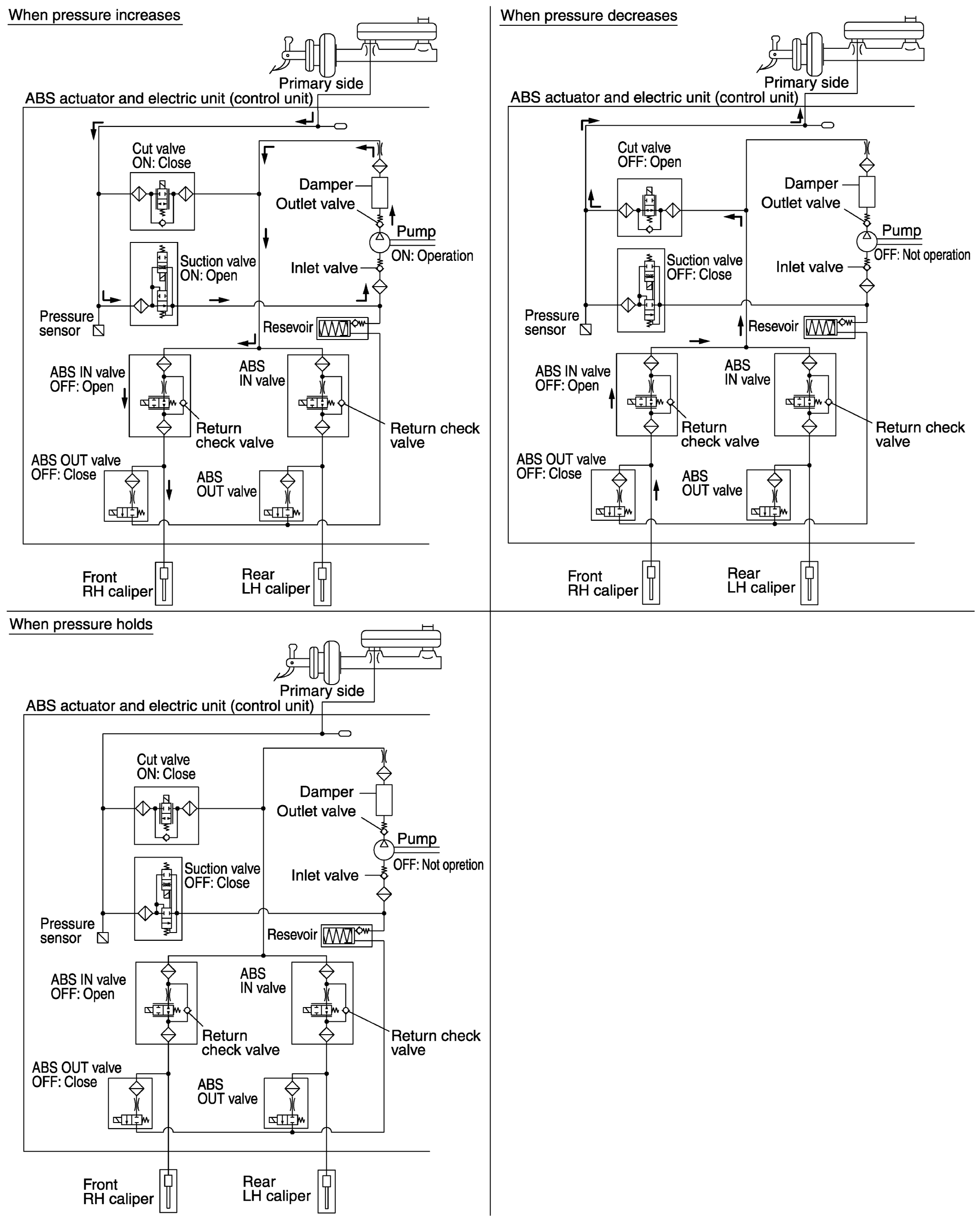

Valve Operation [VDC Function, TCS Function And Brake Limited Slip Differential (BLSD) Function: Notes

Courtesy of NISSAN NORTH AMERICA, INC.

The following descriptions explains the control of front brake right side, as an example.
