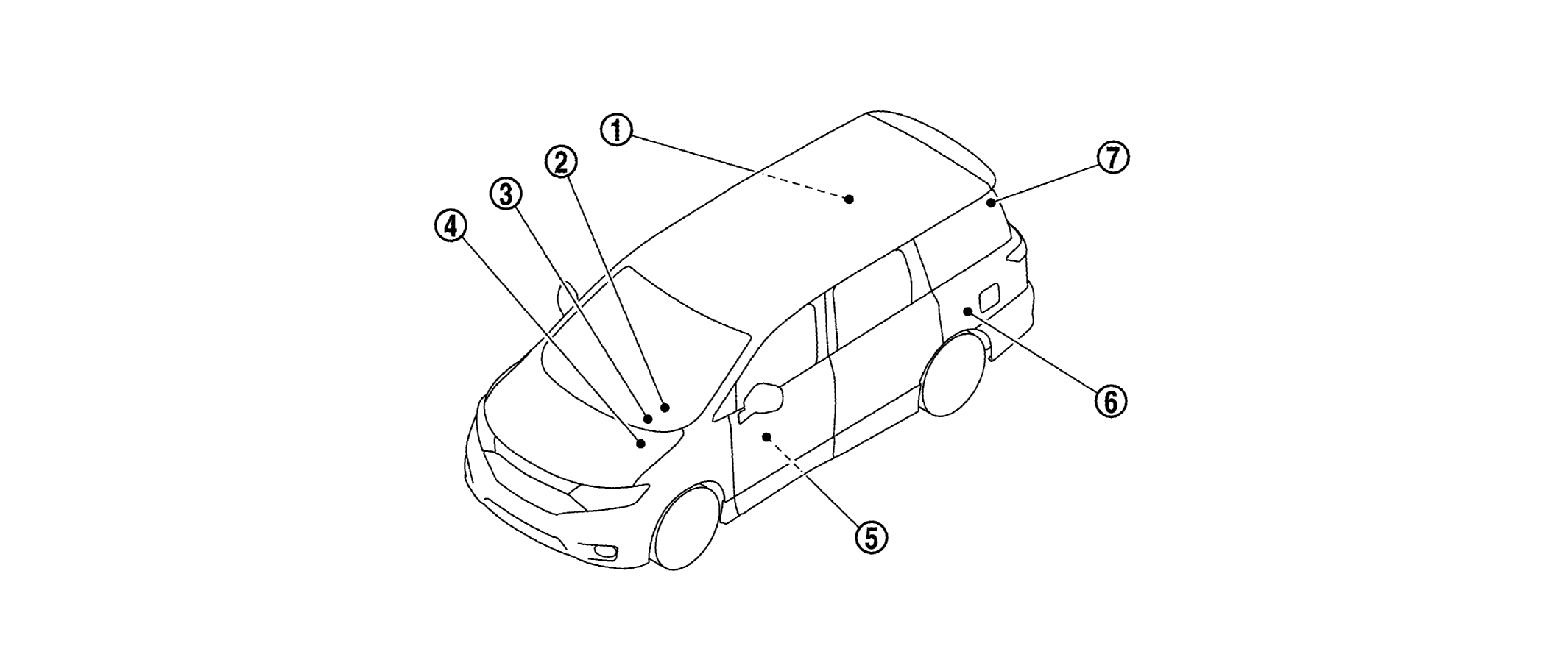

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Sliding door control unit RH Refer to COMPONENT LOCATION .	2.	Combination meter Refer to COMPONENT LOCATION .	3.	BCM Refer to COMPONENT LOCATION .
4.	IPDM E/R Refer to COMPONENT LOCATION .	5.	Driver seat control unit Refer to COMPONENT LOCATION .	6.	Sliding door control unit LH Refer to COMPONENT LOCATION .
7.	Automatic back door control module Refer to COMPONENT LOCATION .
