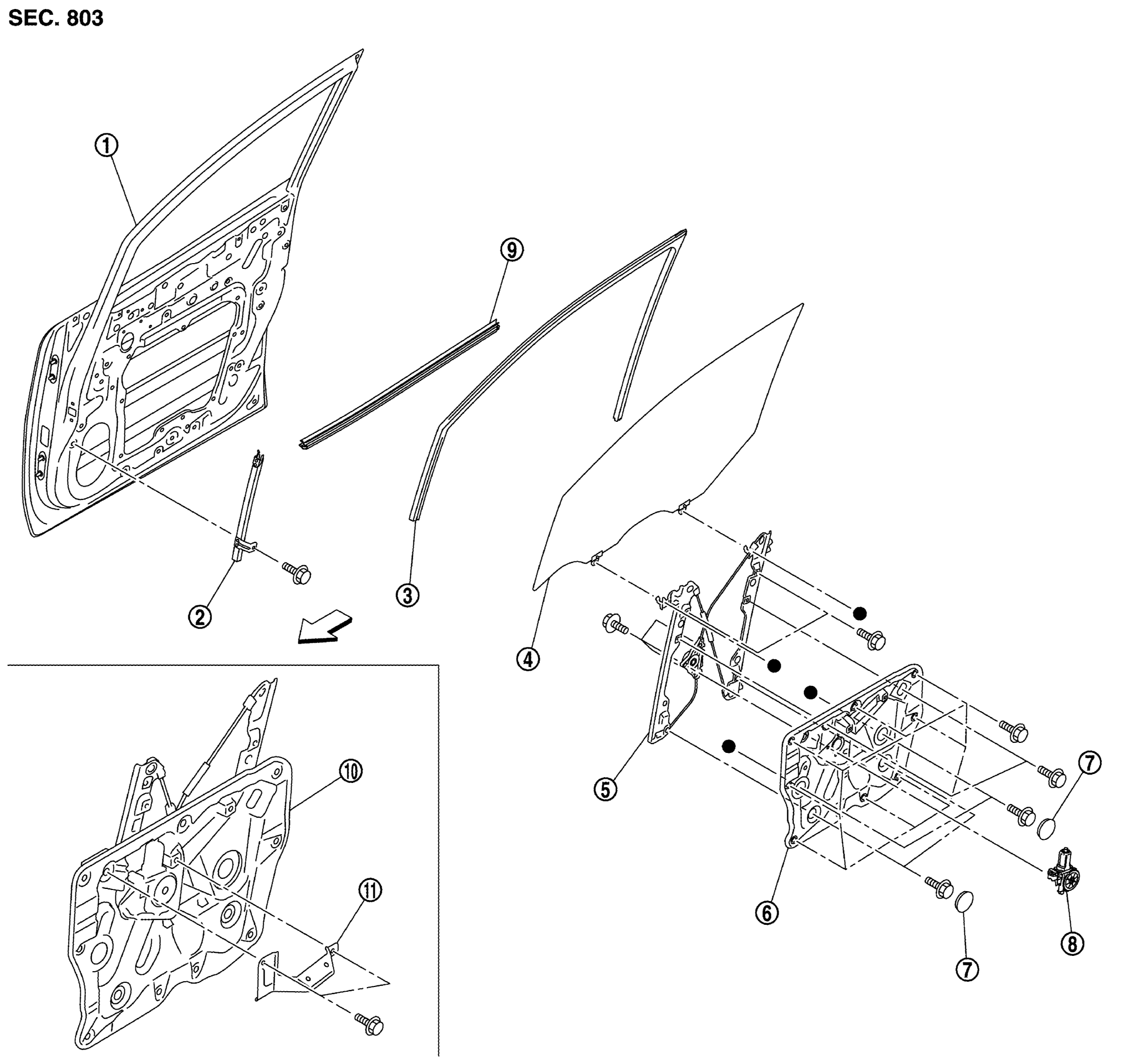

Exploded View With Torque Specifications
| 1. | Front door panel | 2. | Front door sash | 3. | Front door glass run |
| 4. | Front door glass | 5. | Front door regulator assembly | 6. | Front door module base |
| 7. | Front door hole seal | 8. | Power window motor | 9. | Front door inside seal |
| 10. | Front door module assembly | 11. | Pull handle bracket | ||
| : Vehicle front | |||||
| : Indicates that the part is connected at points with same symbol in actual vehicle. | |||||
