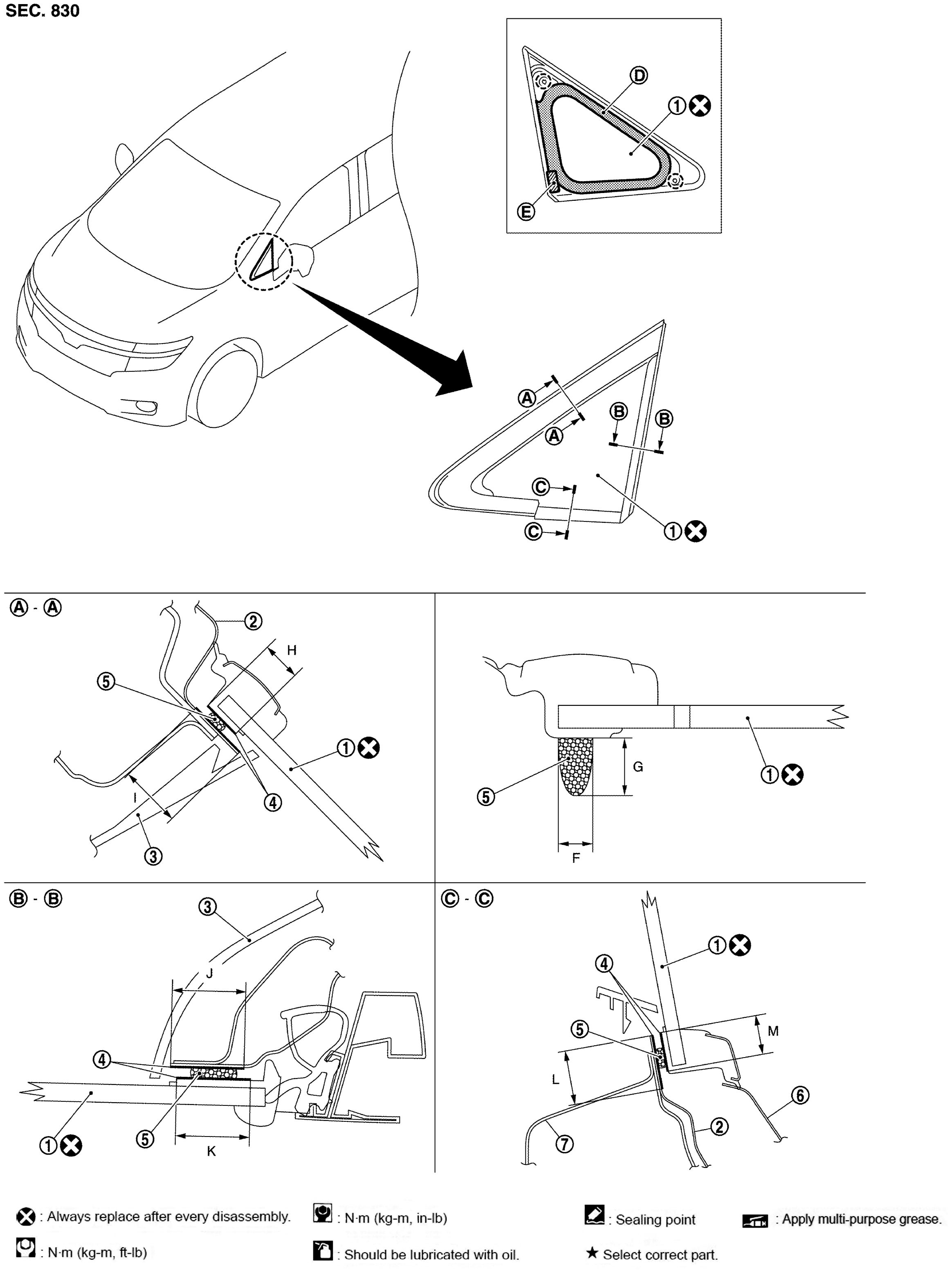

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Opera window	2.	Body side outer	3.	Front pillar garnish
4.	Primer	5.	Adhesive	6.	Front fender
7.	Front pillar inner lower
D	: Glass primer application area
E	: Double sided tape
F	: 6 (0.236)	G	: 10 (0.394)	H	: 13 (0.512)
I	: 20 (0.787)	J	: 20 (0.787)	K	: 20 (0.787)
L	: 20 (0.787)	M	: 14 (0.551)
Unit	: mm (in)
	: Clip
	: Always replace after every disassembly.
