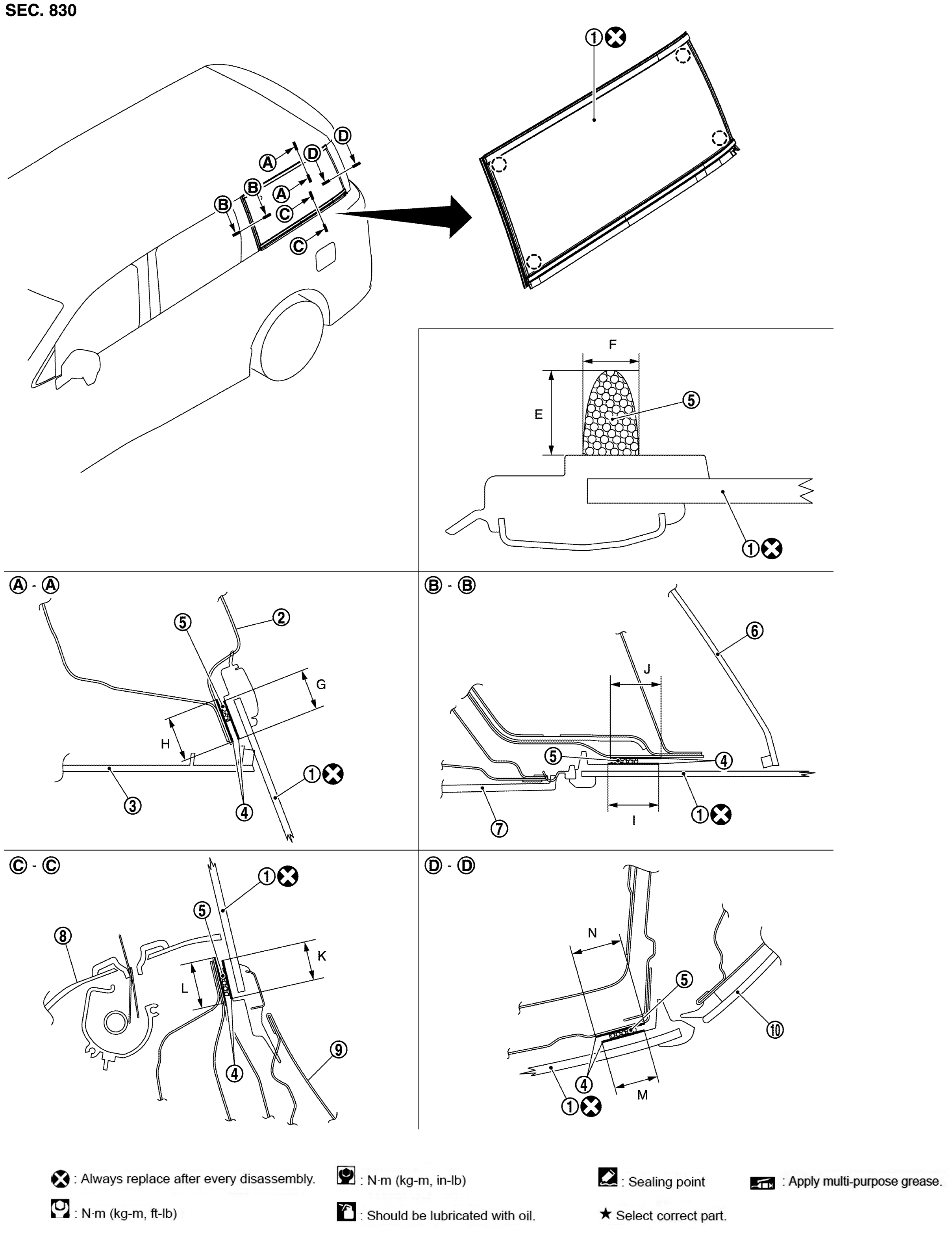

Exploded View With Torque Specifications
| 1. | Side window glass | 2. | Body side outer | 3. | Roof side garnish |
| 4. | Primer | 5. | Adhesive | 6. | Rear pillar garnish |
| 7. | Slide door corner cover outer | 8. | Luggage side lower finisher | 9. | Rear door slide rail cover |
| 10. | Back door window glass | ||||
| : Clip | |||||
| E | : 12 (0.472) | F | : 7 (0.276) | G | : 17 (0.669) |
| H | : 20 (0.787) | I | : 25 (0.984) | J | : 25 (0.984) |
| K | : 17 (0.669) | L | : 20 (0.787) | M | : 17 (0.787) |
| N | : 20 (0.787) | ||||
| Unit | : mm (in) | ||||
| : Always replace after every disassembly. | |||||
