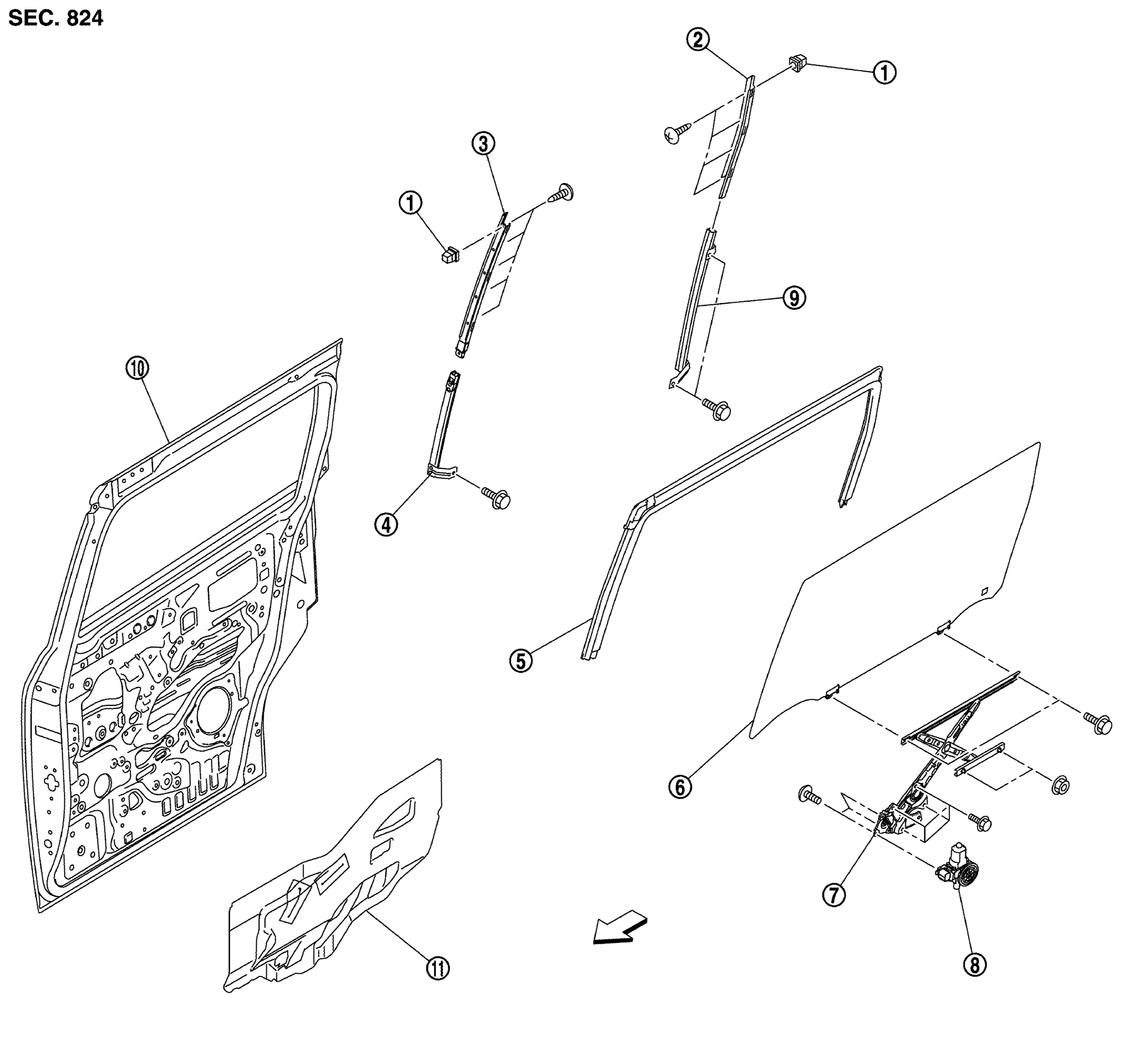

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Grommet	2.	Door upper sash (rear)	3.	Door upper sash (front)
4.	Door lower sash (front)	5.	Door glass run	6.	Slide door glass
7.	Regulator assembly	8.	Power window motor	9.	Door lower sash (rear)
10.	Slide door panel	11.	Sealing screen
	: Vehicle front
