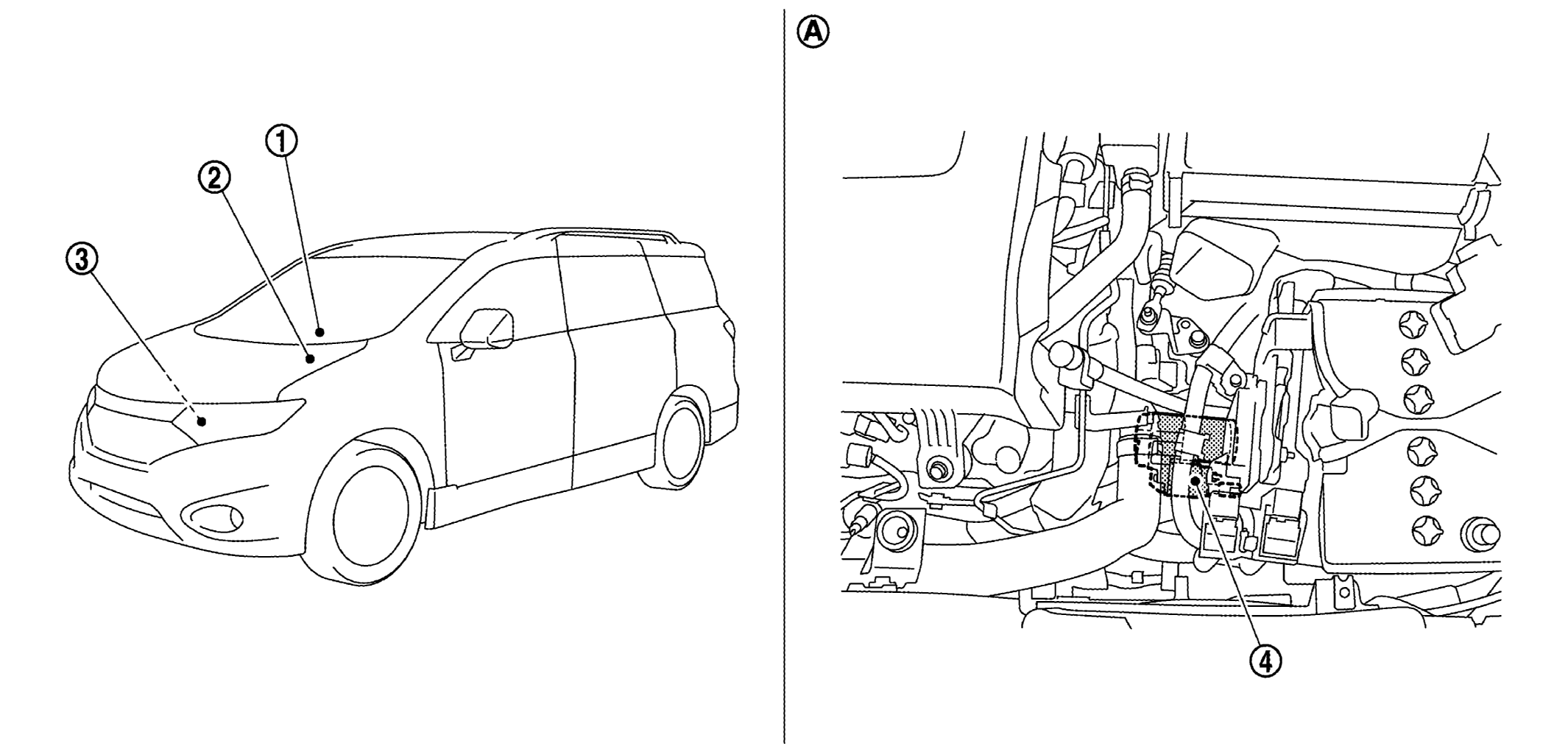

Component Location
| A. | Engine room LH |
| No. | Component part | Description |
|---|---|---|
| 1. | BCM | BCM controls the starter relay. Refer to COMPONENT LOCATION . |
| 2. | IPDM E/R | CPU inside IPDM E/R controls the starter control relay. Refer to COMPONENT LOCATION . |
| 3. | Transmission range switch | When the selector lever is shifted to the "P" or "N" position, power is supplied to BCM and IPDM E/R (CPU) by transmission range switch. |
| 4. | Starter motor | The starter motor plunger closes and the motor is supplied with battery power, which in turn cranks the engine, when the "S" terminal is supplied with electric power. |
