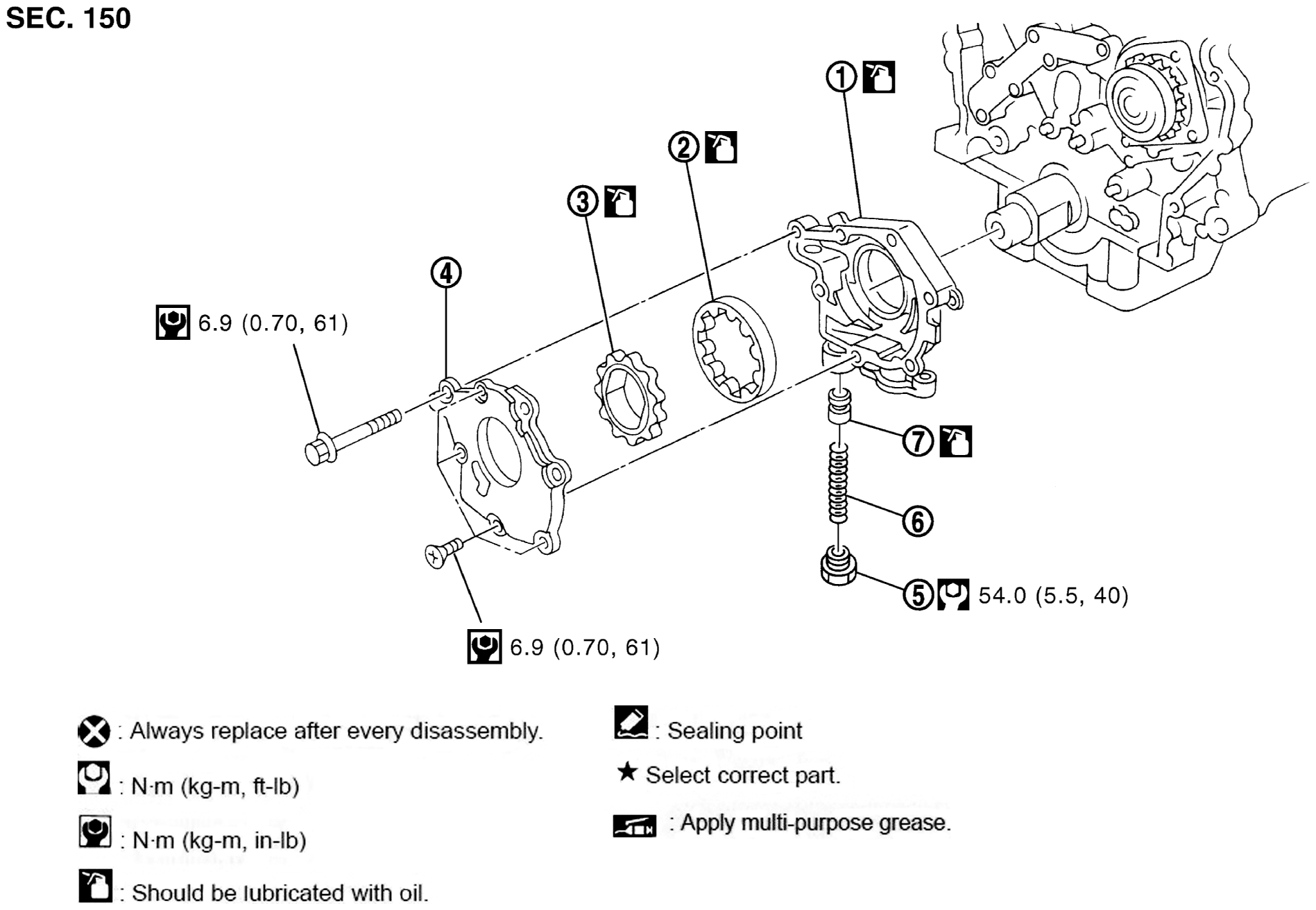

Exploded View

Fig 1: Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump body	2.	Oil pump outer rotor	3.	Oil pump inner rotor
4.	Oil pump cover	5.	Regulator valve plug	6.	Regulator valve spring
7.	Regulator valve
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Should be lubricated with oil.
