Exploded View With Torque Specifications

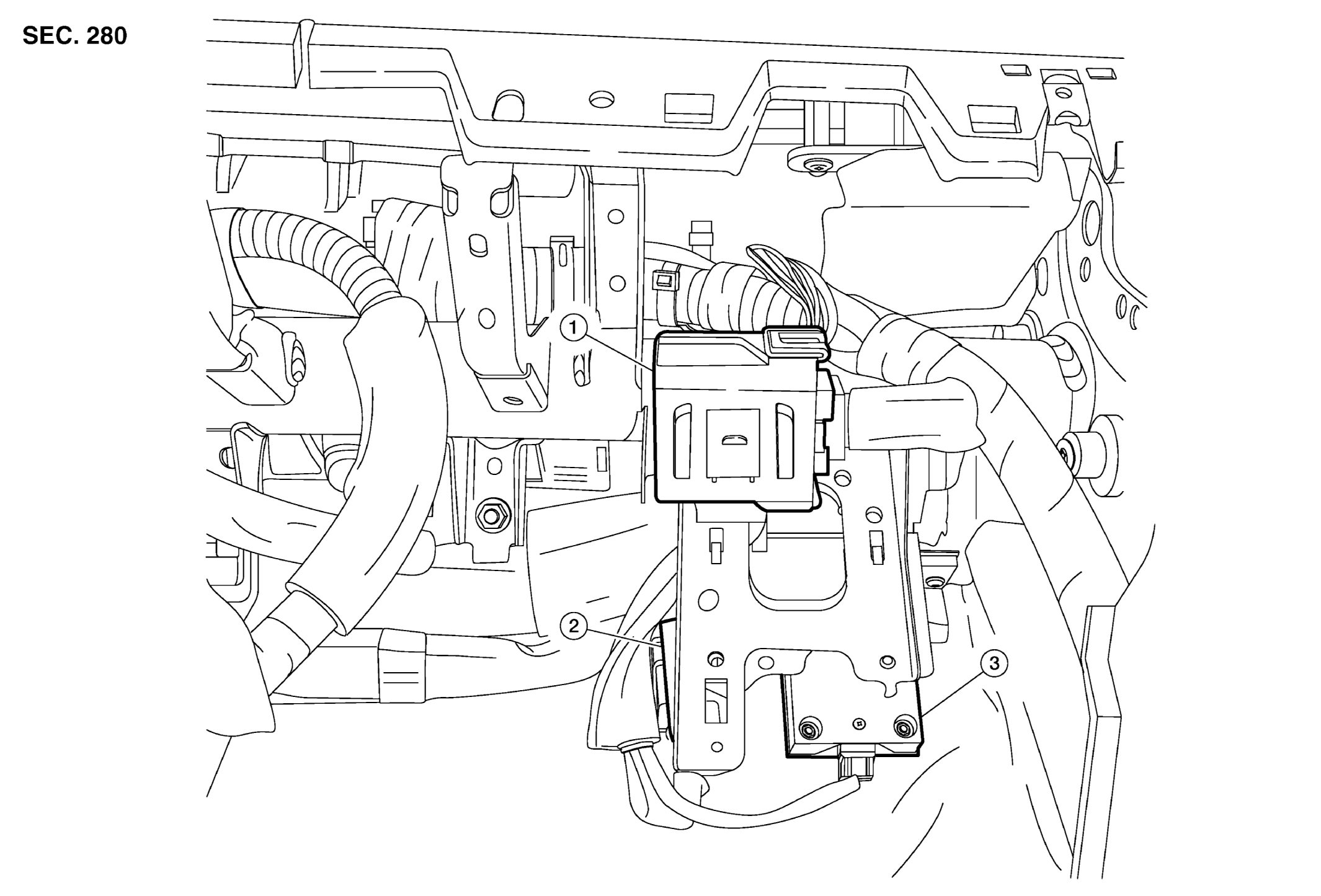

With Around View Monitor
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Warning systems buzzer |
2. |
Around view monitor control unit |
3. |
Chassis control module |
| A. |
Harness connector |
|
|
|
|
Without Around View Monitor
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Chassis control module |
2. |
ADAS control unit 2 |
3. |
Warning systems buzzer |
