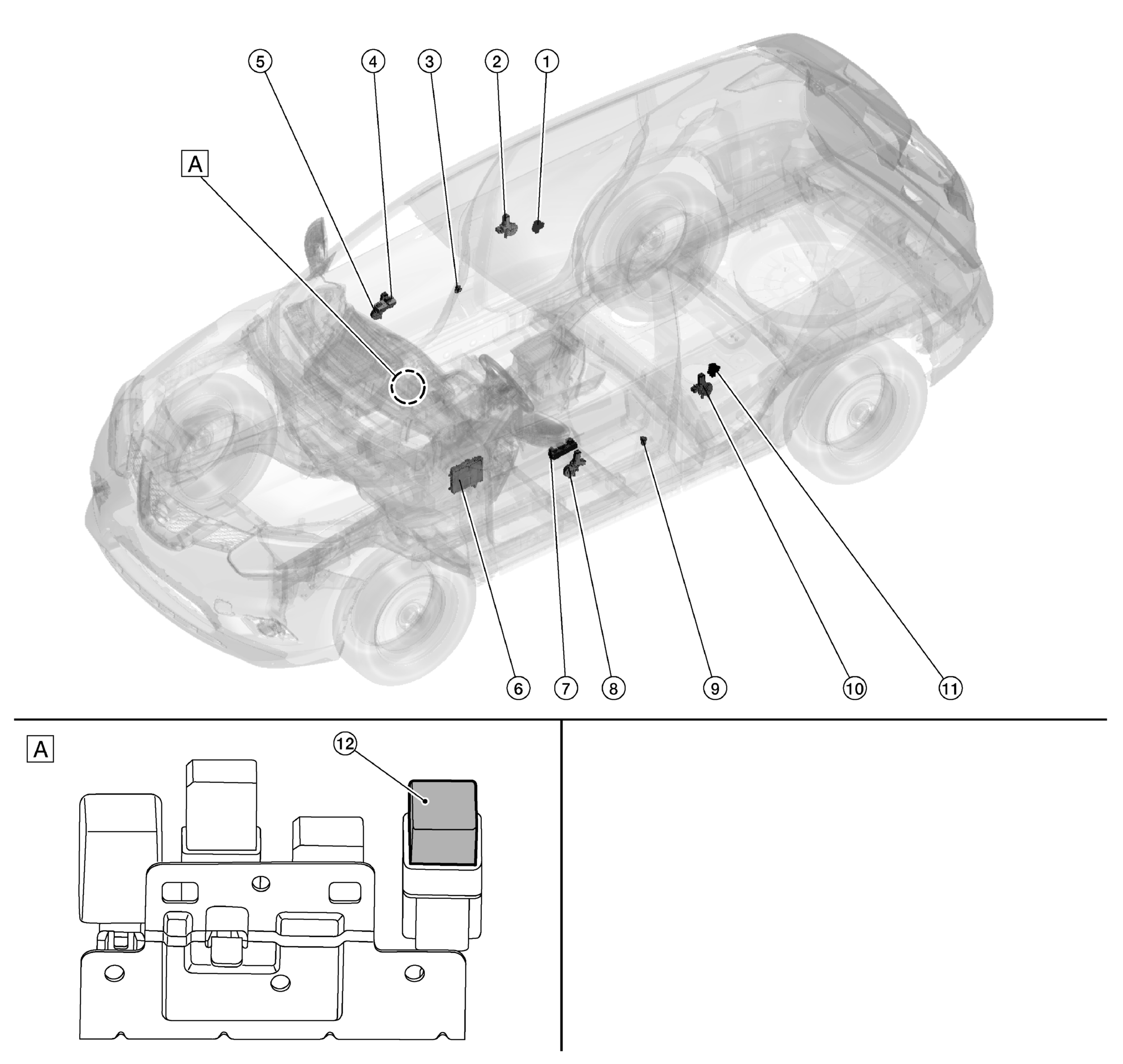

| 1. |
Rear power window switch RH |
Refer to REAR POWER WINDOW SWITCH . |
| 2. |
Rear power window motor RH |
Refer to POWER WINDOW MOTOR . |
| 3. |
Front door switch RH |
|
| 4. |
Power window and door lock/unlock switch RH |
Refer to POWER WINDOW SWITCH RH . |
| 5. |
Front power window motor RH |
Refer to POWER WINDOW MOTOR . |
| 6. |
BCM |
- Supplies power supply to power window relay.
- Controls retained power.
- Refer to COMPONENT LOCATION
for detailed installation
location.
|
| 7. |
Main power window and door lock/unlock switch |
Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH . |
| 8. |
Front power window motor LH |
Refer to POWER WINDOW MOTOR . |
| 9. |
Front door switch LH |
|
| 10. |
Rear power window motor LH |
Refer to POWER WINDOW MOTOR . |
| 11. |
Rear power window switch LH |
Refer to REAR POWER WINDOW SWITCH . |
| 12. |
Power window relay |
Operates the power window system with the control signal from the BCM. |
