Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

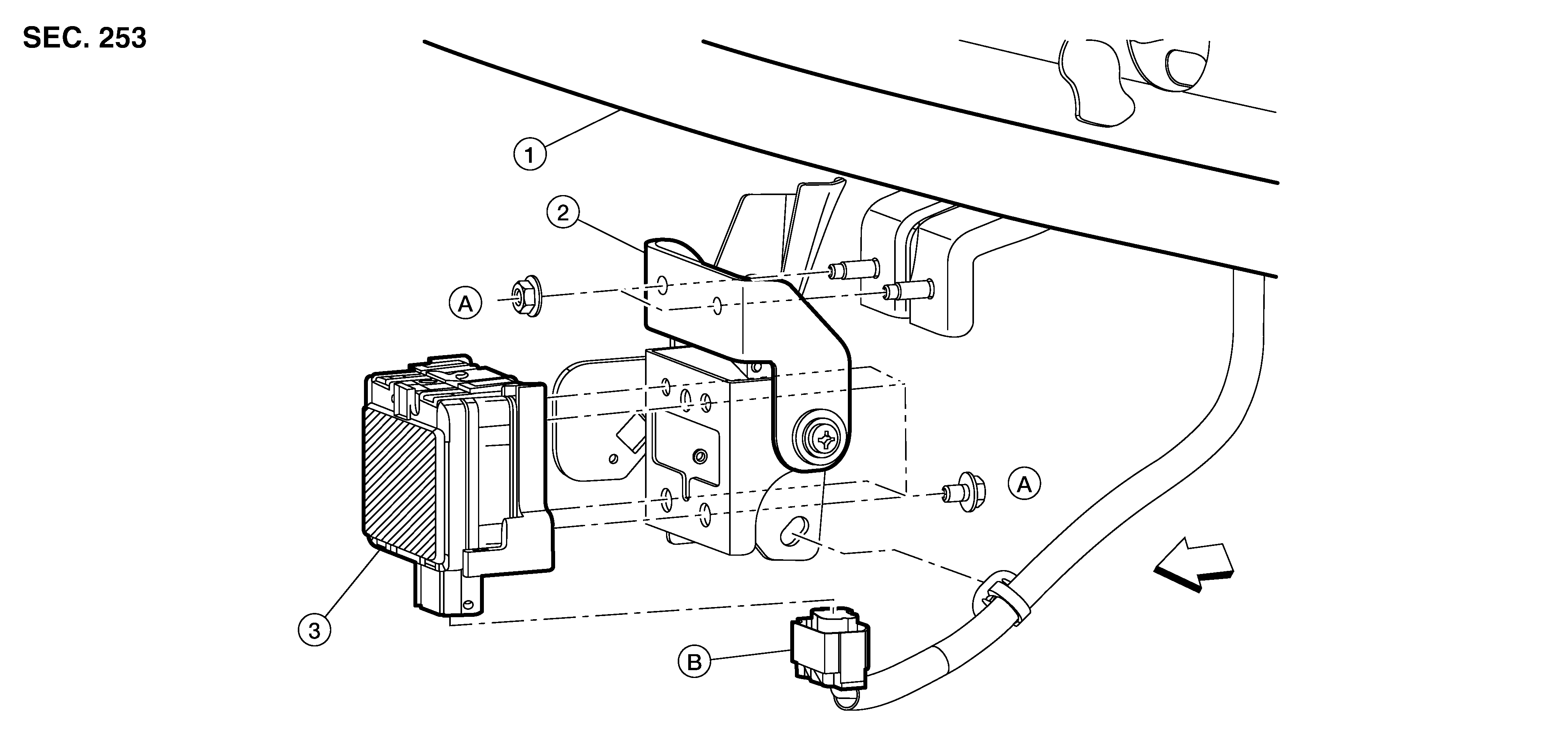

Fig 1: Exploded View Of ICC Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front bumper reinforcement	2.	ICC sensor bracket	3.	ICC sensor
A.	Refer to INSTALLATION	B.	ICC sensor harness connector		Front
