Component Location

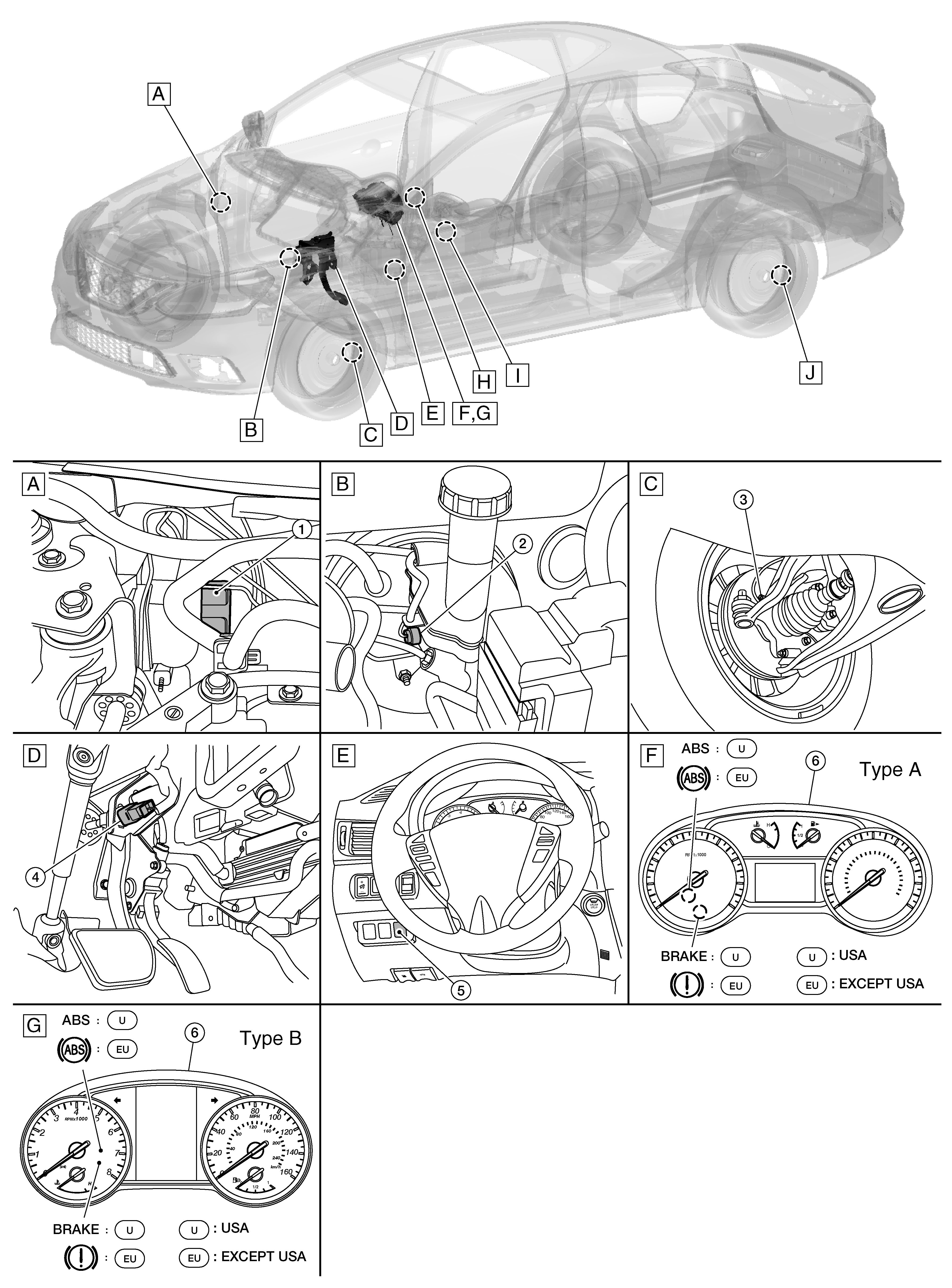

| A. | Right side of engine compartment | B. | Left side of engine compartment | C. | Left front wheel area |
| D. | Left side of instrument panel | E. | Left side of instrument panel | F. | Left side of instrument panel (view of combination meter removed from vehicle) |

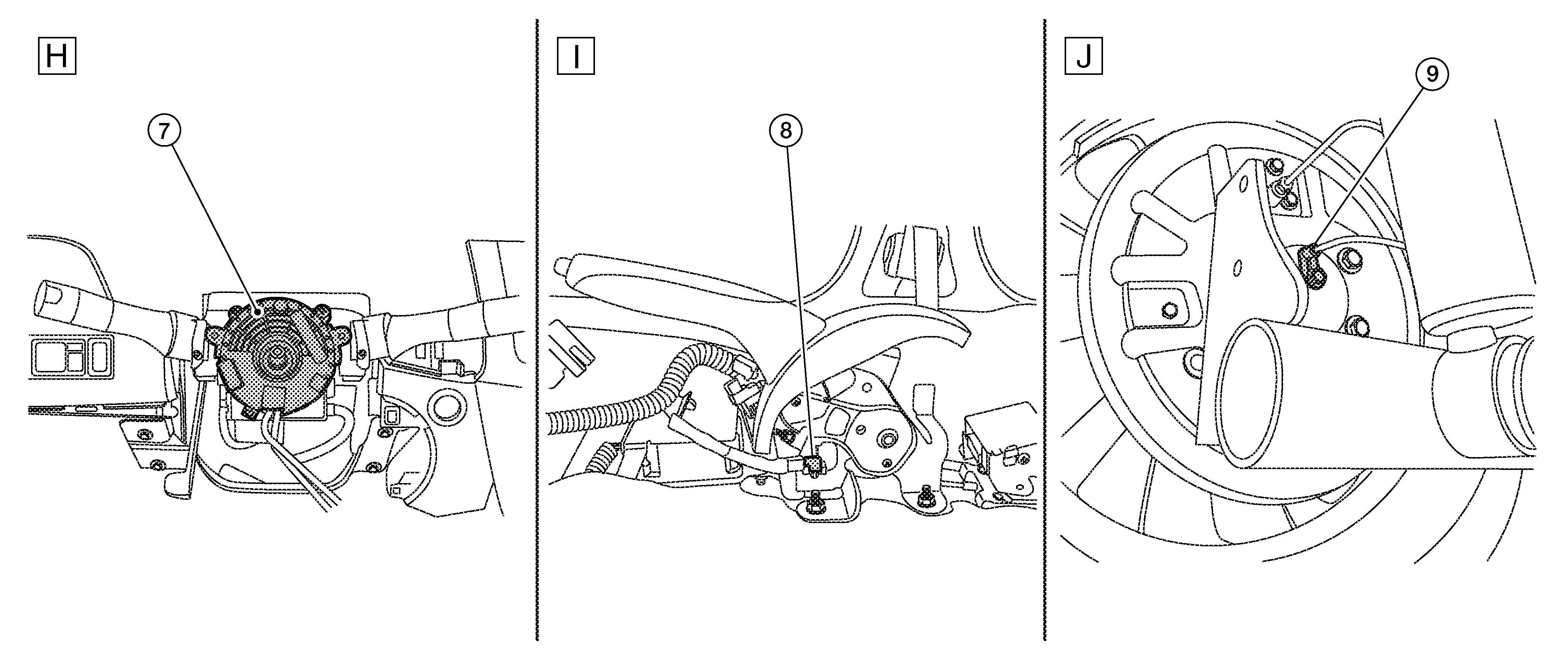

| G. | Left side of instrument panel (view of combination meter removed from vehicle) | H. | Steering wheel area (view with steering wheel removed) | I. | Center console area (view with center console removed) |
| J. | Left rear wheel area |
| No. | Component parts | Function |
|---|---|---|
| 1. | ABS actuator and electric unit (control unit) | ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) |
| 2. | Brake fluid level switch | BRAKE FLUID LEVEL SWITCH |
| 3. | Front LH wheel sensor | WHEEL SENSOR AND SENSOR ROTOR |
| 4. | Stop lamp switch | STOP LAMP SWITCH |
| 5. | VDC OFF switch | VDC OFF SWITCH |
| 6. | Combination meter | SYSTEM DESCRIPTION (Type A) or SYSTEM DESCRIPTION (Type B) |
| 7. | Steering angle sensor | STEERING ANGLE SENSOR |
| 8. | Parking brake switch | PARKING BRAKE SWITCH |
| 9. | Rear LH wheel sensor | WHEEL SENSOR AND SENSOR ROTOR |
