Disassembly And Assembly: Disassembly

  1. Remove the center console assembly. Refer to REMOVAL AND INSTALLATION .
  2. Remove the center console upper finisher.

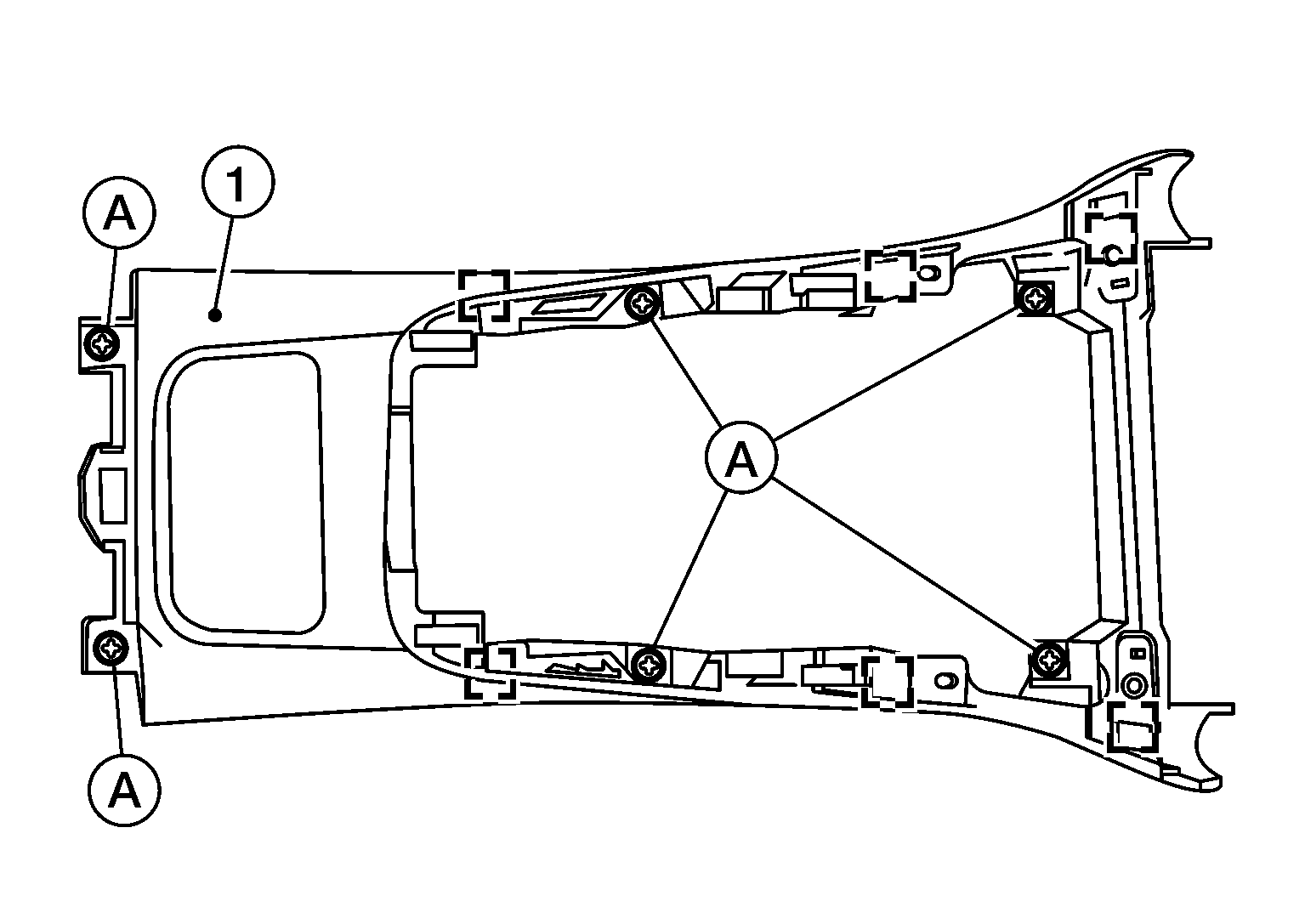

    1. Remove the center console upper finisher screws (A).
      GNSAWJIA1281ZZ-281Courtesy of NISSAN NORTH AMERICA, INC.
    2. Release the center console upper finisher pawls using a suitable tool.

      SHIKAKU-H : Metal clip

    3. Remove the center console upper finisher (1).
  3. Remove center console coin tray (if equipped).
  4. Remove heated seat switch finisher (if equipped).
  5. Remove center console rear finisher cover.
  6. Remove center console bin lid.
  7. Remove center console bin.
  8. Remove center console switch mask.
