Exploded View

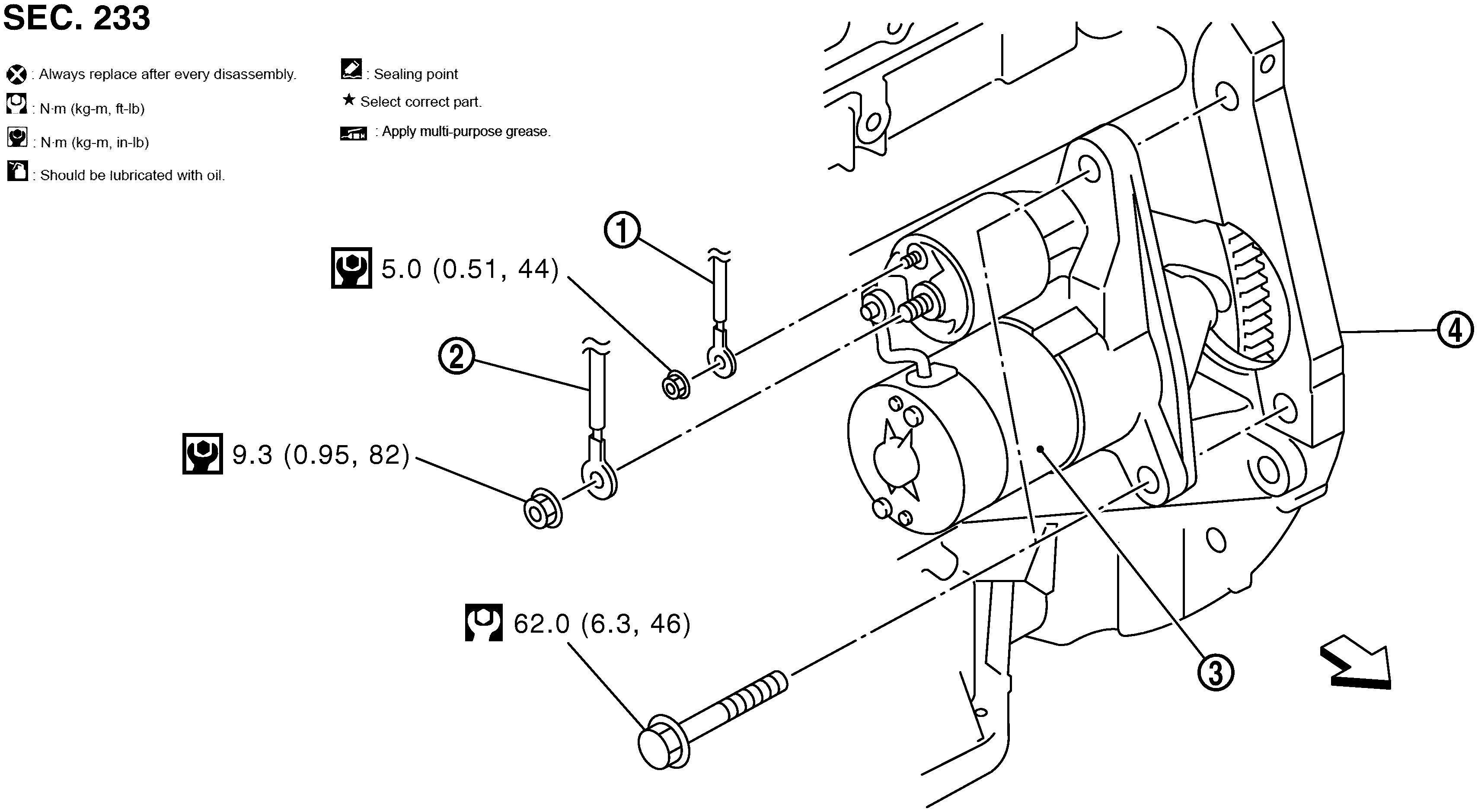

Fig 1: Starter Motor With Torque Specifications
GNSPKIC8095E-095ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Terminal "S" harness 2. Terminal "B" harness 3. Starter motor
4. Cylinder block ARROW Front
