Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

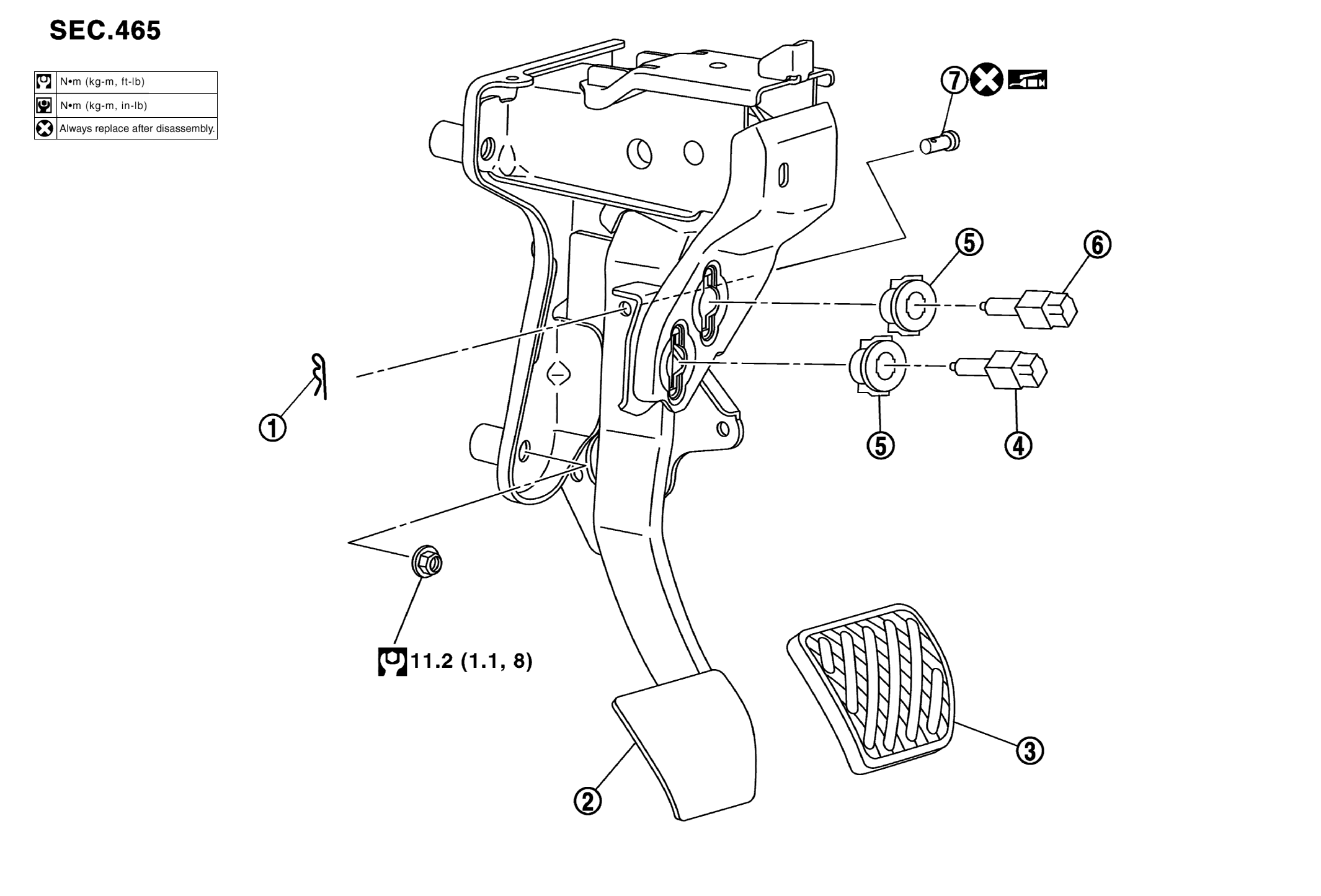

Fig 1: Exploded View Of Brake Pedal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Snap pin	2.	Brake pedal assembly	3.	Brake pedal pad
4.	Brake pedal position switch	5.	Clip	6.	Stop lamp switch
7.	Clevis pin
	Apply multi-purpose grease.
