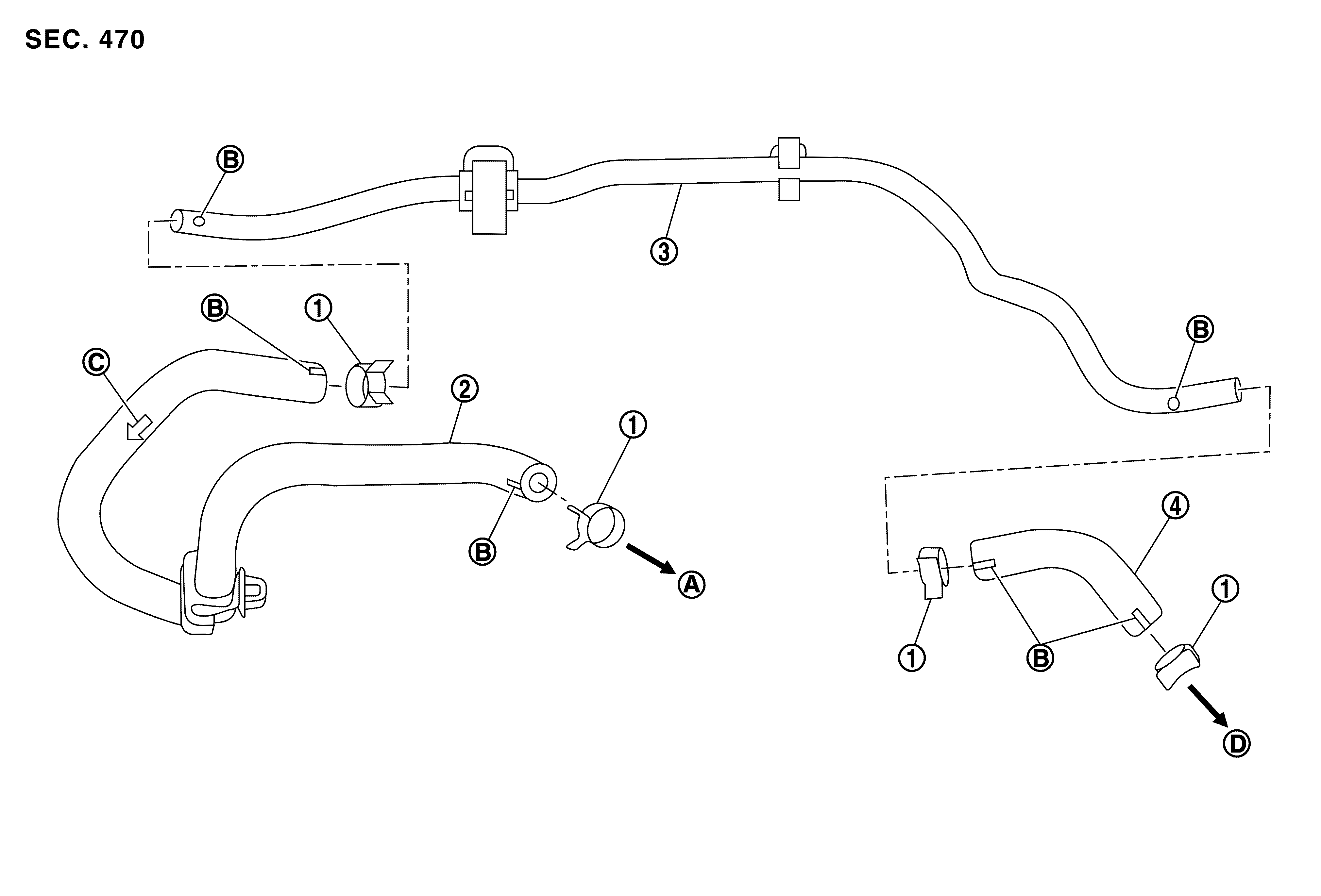

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Clamp |
2. |
Vacuum hose (built-in check valve) |
3. |
Vacuum piping |
| 4. |
Vacuum hose |
A. |
To intake manifold side |
B. |
Paint mark |
| C. |
Stamp indicating engine direction |
D. |
To brake booster |
|
|
