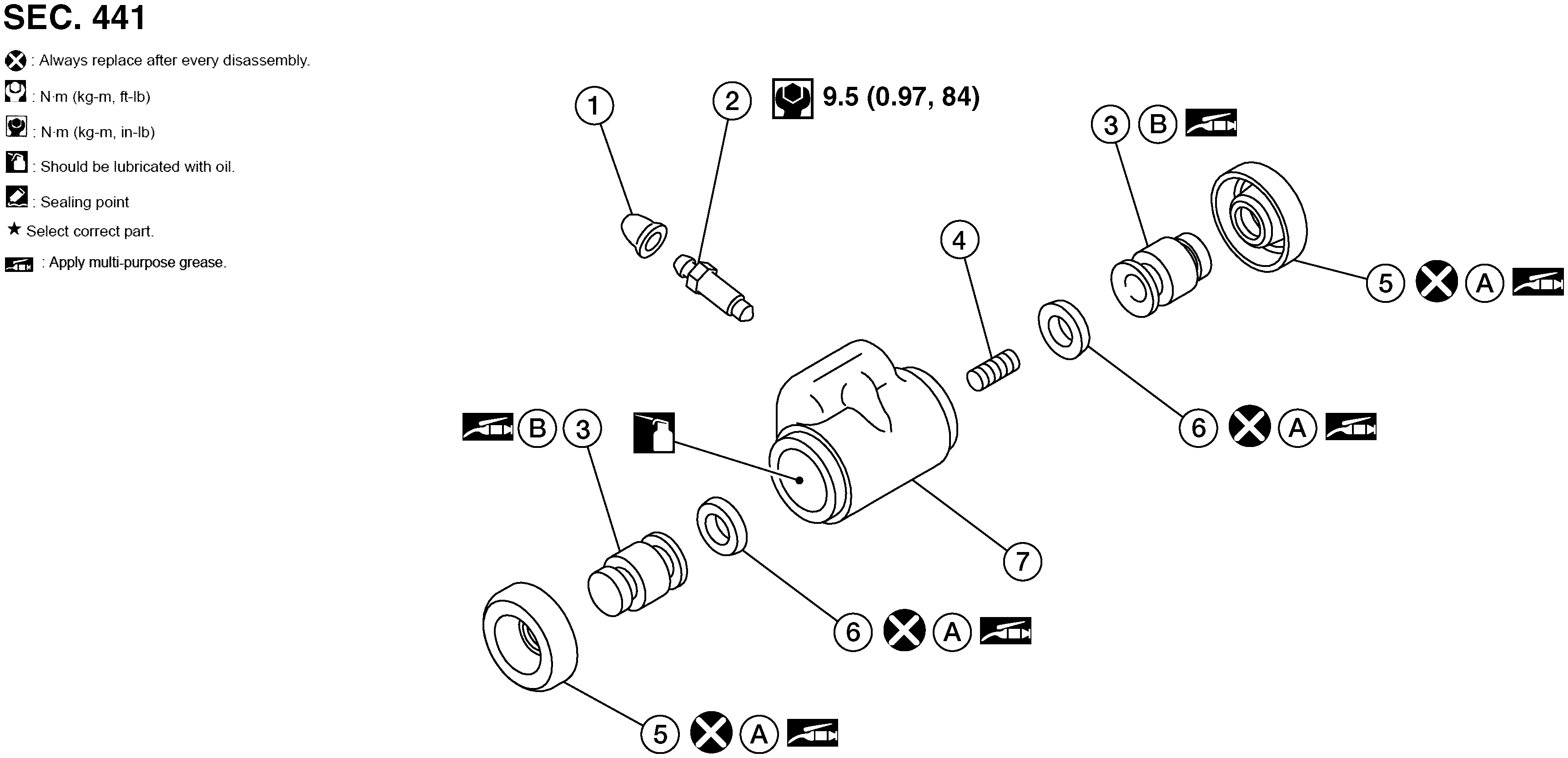

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Cap |
2. |
Bleeder valve |
3. |
Piston |
| 4. |
Spring |
5. |
Boot |
6. |
Piston cup |
| 7. |
Wheel cylinder |
A. |
Apply rubber grease |
B. |
Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease |
 |
Apply brake fluid |
|
|
|
|
