Fuel Level Sensor Unit
›

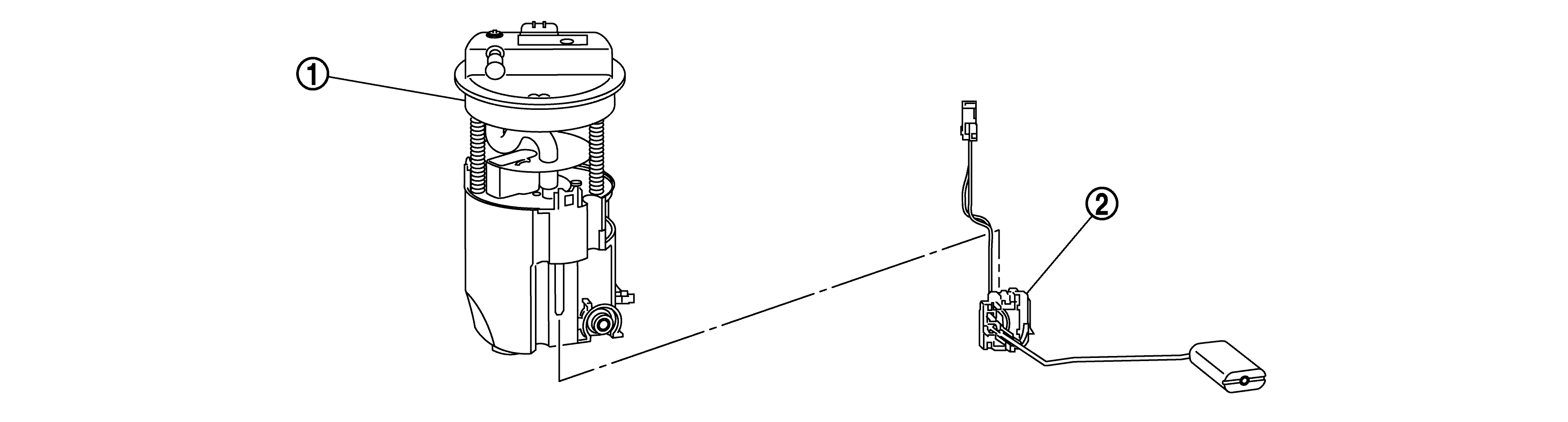

Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel filter and fuel pump assembly
2.
Fuel level sensor unit
Courtesy of NISSAN NORTH AMERICA, INC.
