Exploded View

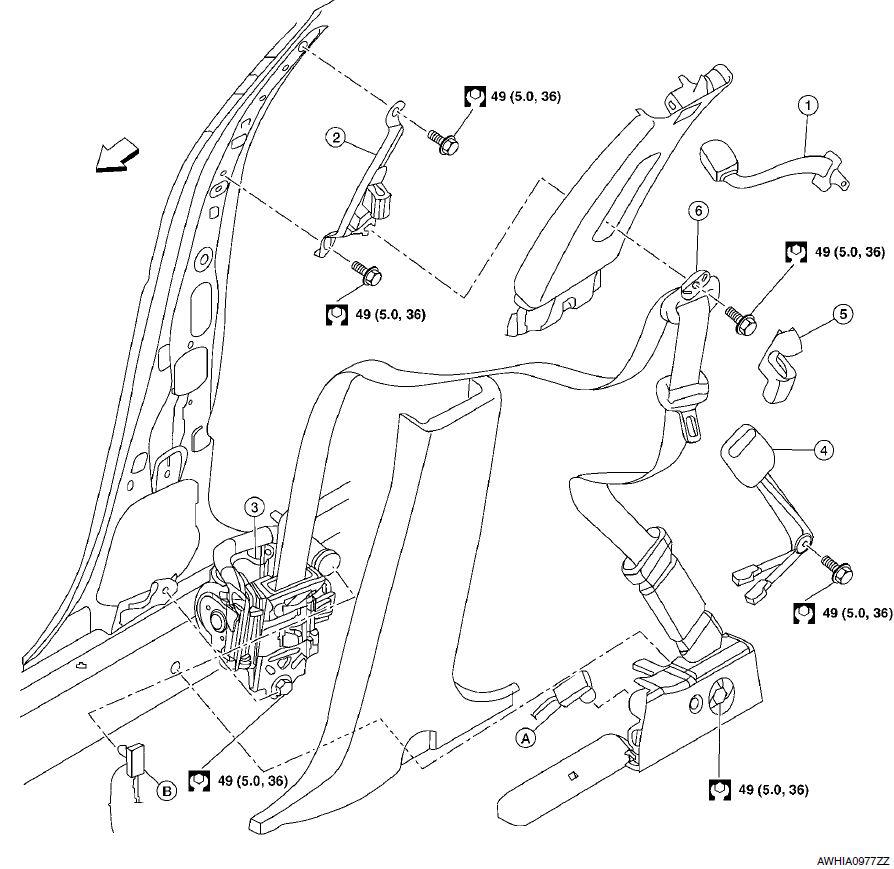

Fig 1: Front Seat Belt With Torque Specifications

G00580842

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt extender	2.	Seat belt height adjuster	3.	Seat belt retractor
4.	Seat belt buckle	5.	Seat belt height adjuster cover	6.	D-ring anchor
A.	Lap belt pre-tensioner harness connector	B.	Shoulder belt pre-tensioner harness connector		Front

NOTE:

RH side shown; LH side similar.
