Removal And Installation
›
Steering Column
›
Exploded View
Exploded View
MRA8DE

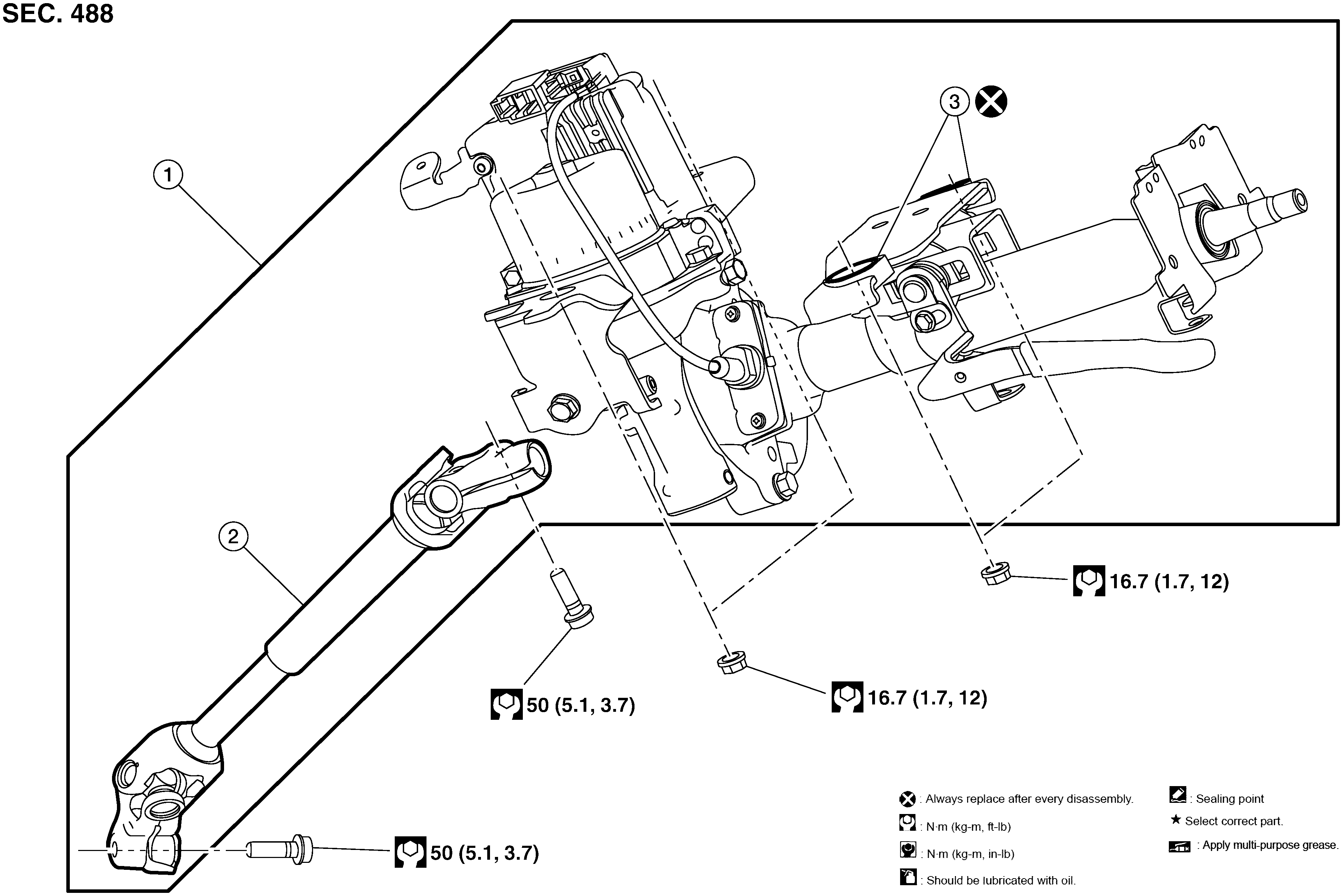

Fig 1: Steering Column MRA8DE With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Lower joint
3.
Slide plates
MR16DDT

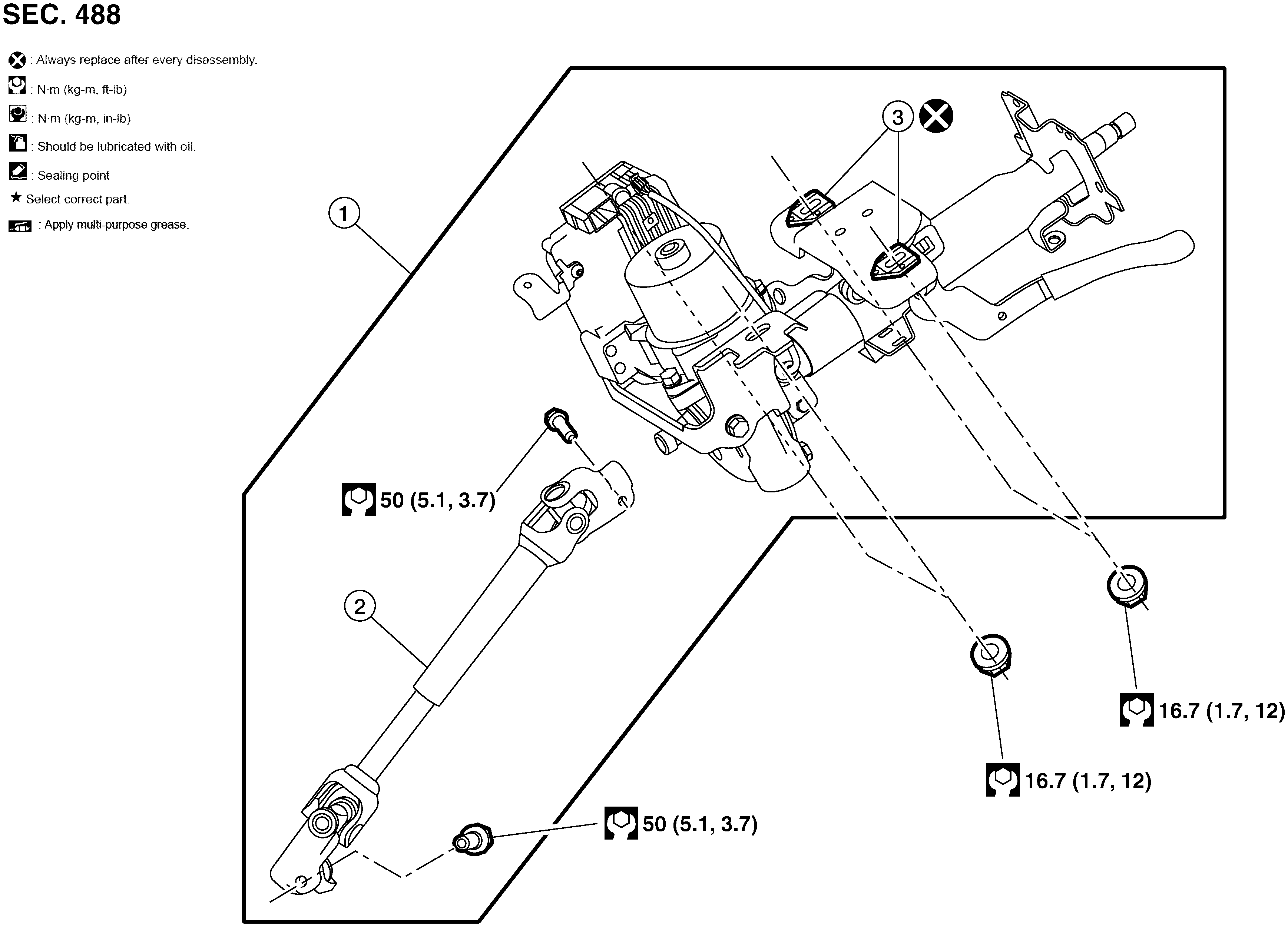

Fig 2: Steering Column MR16DDT With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Lower joint
3.
Slide plates
